How strong is this bolt lock?

This lock is built to handle up to 2,600 pounds of holding force, thanks to its solid stainless steel bolt. That makes it a tough and reliable choice for securing doors in both residential and commercial settings.

What happens to the lock if the power goes out?

The VIS-DP102-FSE-LED is fail-secure, which means the bolt will lock in place during a power outage. This helps protect your property by keeping the door locked even if power is lost.

Can I adjust how long the door stays unlocked?

Yes. This lock comes with a time delay feature that lets you choose between 0, 3, or 6 seconds before it locks again. This gives you some control over how fast the door re-secures itself after unlocking.

Is this lock considered an electric deadbolt?

Yes, the VISIONIS DP102-FSE-LED is often called an electric deadbolt because it uses a motorized bolt to lock the door instead of a traditional key. It offers strong security with keyless control and smooth operation.

Electric Drop Bolt Lock 2,600lbs Dead Bolt - FPC-5386

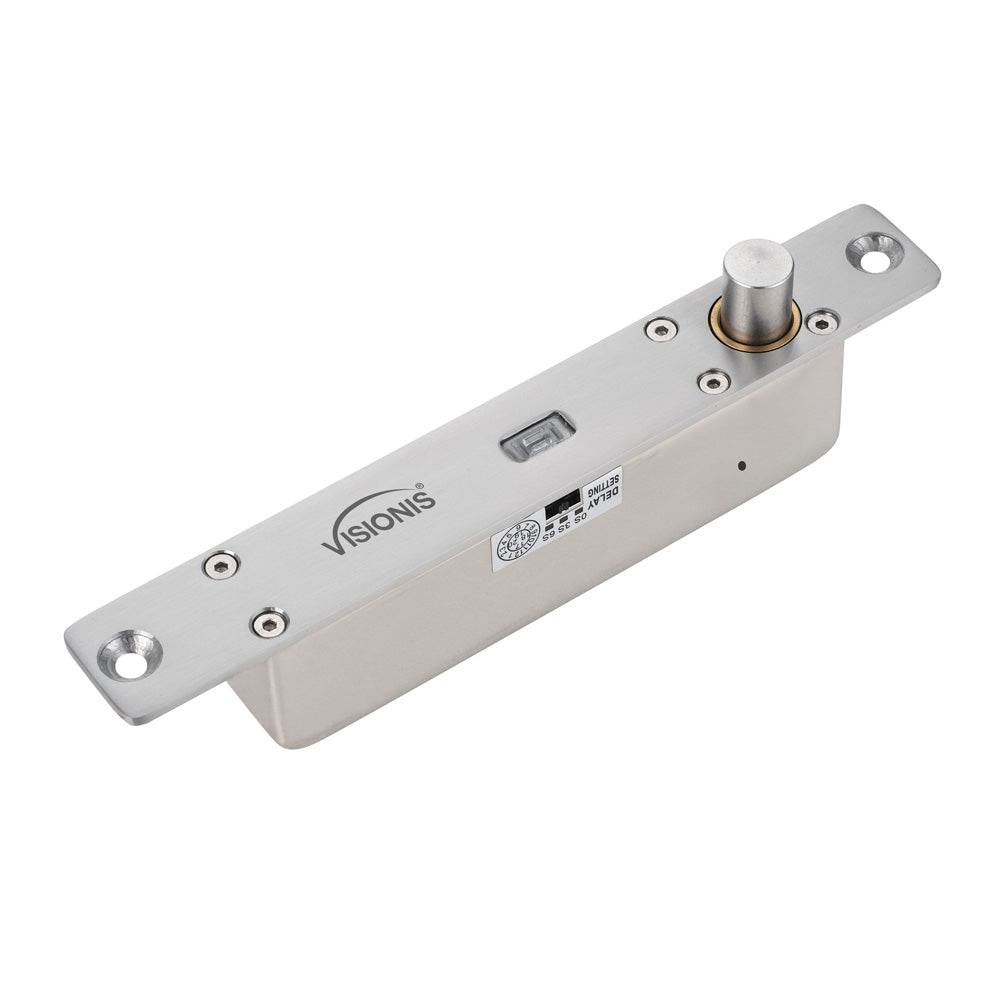

Electric drop bolt lock with 2600lb holding force, LED, and fail secure function. VIS-DP102-FSE-LED VISIONIS

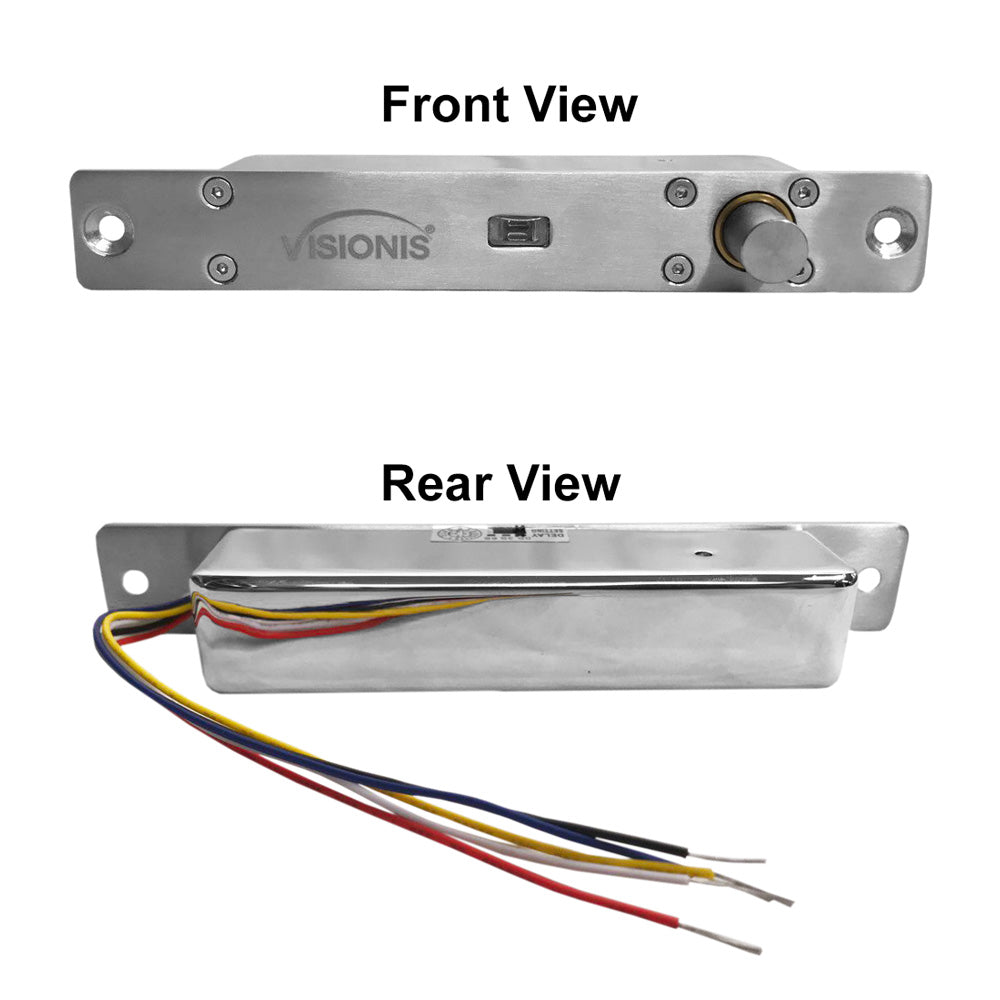

Electric bolt front a rear view VIS-DP102-FSE-LED Visionis

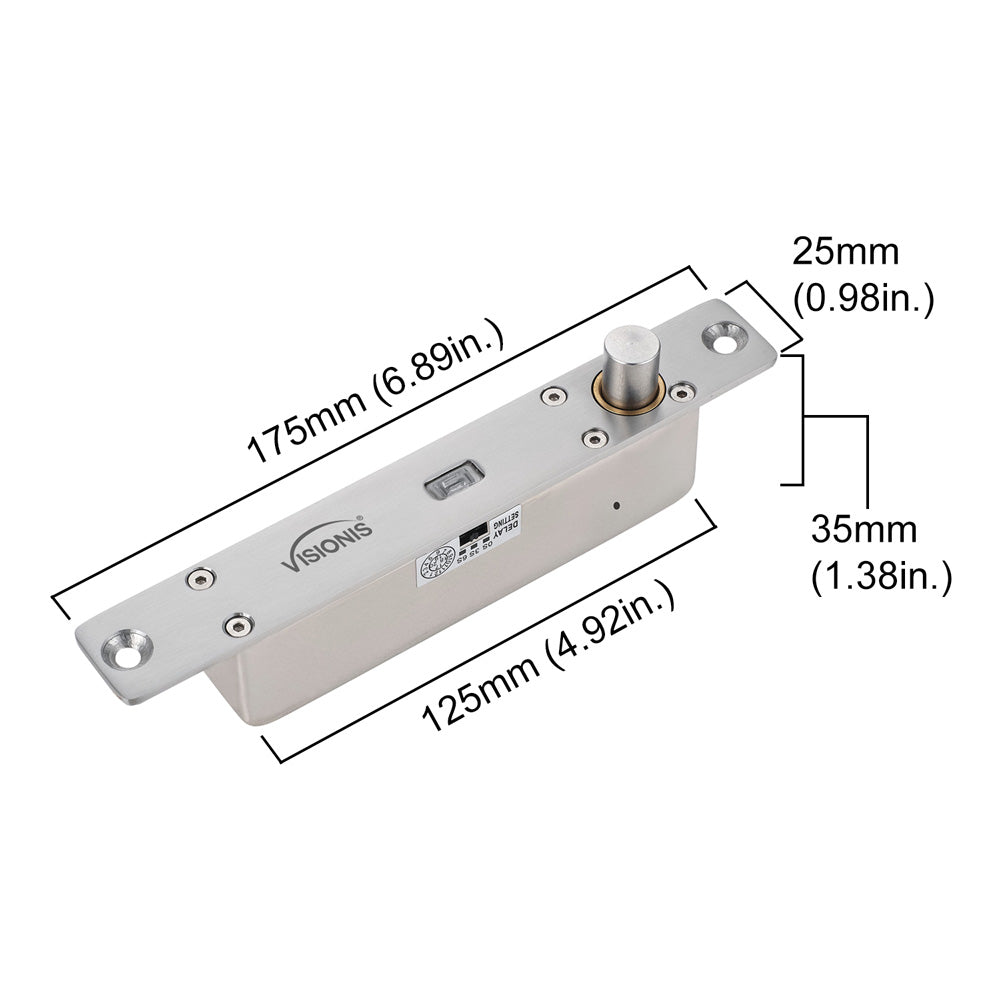

Electric drop bolt lock dimensions VIS-DP102-FSE-LED Visionis

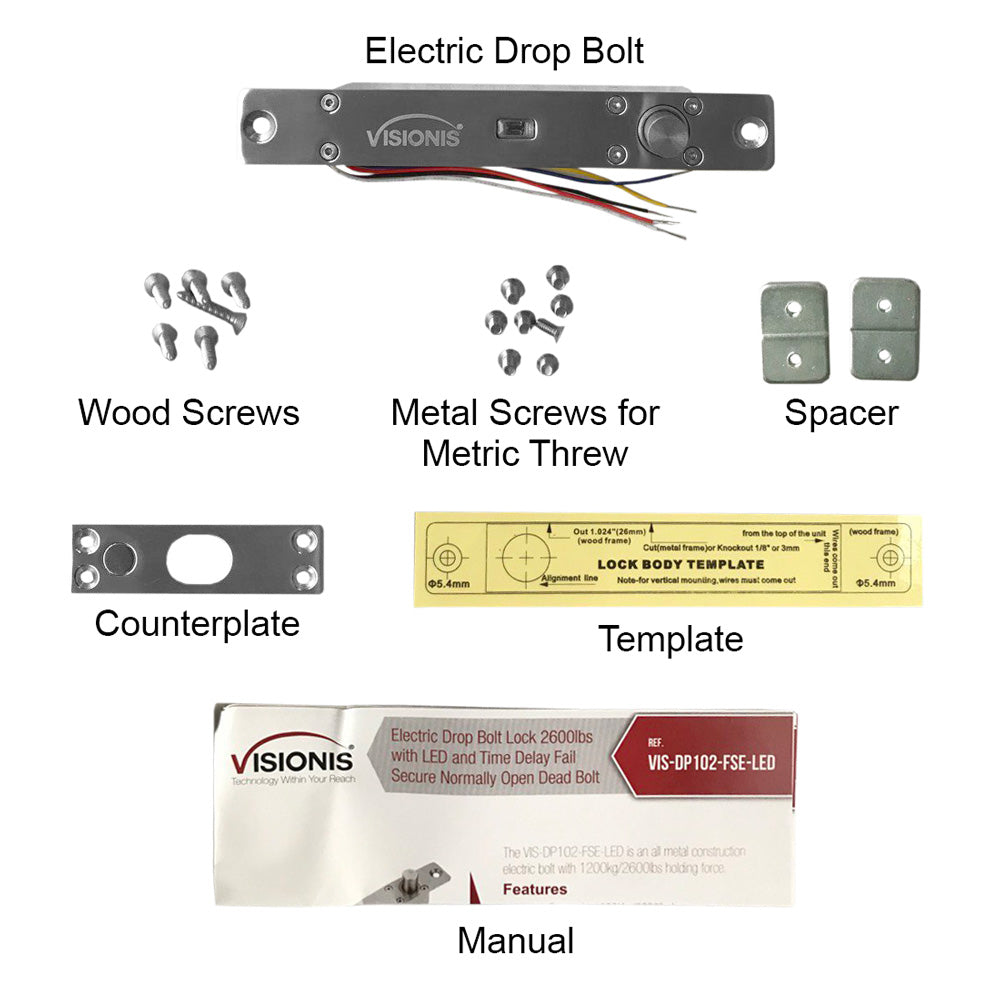

Electric deadbolt items included in the box - VIS-DP102-FSE-LED Visionis

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-DP102-FSE-LED: Electric Drop Bolt Lock 2,600Lbs With LED and Time Delay Fail Secure Normally Open Dead Bolt

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The FPC-5386 kit includes the VISIONIS VIS-DP102-FSE-LED drop bolt lock, a fail-secure, normally open locking solution designed for reliable door security. It delivers an impressive 2,600 lbs of holding force and features a built-in LED indicator, adjustable time delay, and a power supply for easy installation.

When power is applied, the stainless steel bolt extends and locks into place, securing the door with strength and precision. Its design allows for a clean, concealed installation, similar to a shear lock—ideal for doors where appearance and performance matter.

The time delay can be set to 0, 3, or 6 seconds, giving you flexibility in how and when the door locks. As a fail-secure device, the bolt automatically engages during a power outage, keeping the door locked for maximum security. The included power supply ensures you can get started right out of the box.

Characteristics

Model No. VIS-DP102-FSE-LED:

Voltage: DC12V - DC24V
Holding Force: 1200Kg (2600lbs)
Current: (DC12V): Standby 110mA
Function: Fail Secure. N/O with power it’s unlock
Time Delay: 0/3/6 sec; Unlock time delay: 6 sec (If do not push the door after unlocking, again automatically lock)
Bolt: SUS 304 solid stainless steel
Size: 175Lx25Wx35H (mm) - 6.89Lx0.98Wx1.38H (in.)
Product + Packaging Weight: 0.64Kg (1.41 pounds)
Operating Temperature: -20°C / +50°C (-4°F / 122°F)
Cycles Tested: 300.000

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The FPC-5386 kit includes the VISIONIS VIS-DP102-FSE-LED drop bolt lock, a fail-secure, normally open locking solution designed for reliable door security. It delivers an impressive 2,600 lbs of holding force and features a built-in LED indicator, adjustable time delay, and a power supply for easy installation.

When power is applied, the stainless steel bolt extends and locks into place, securing the door with strength and precision. Its design allows for a clean, concealed installation, similar to a shear lock—ideal for doors where appearance and performance matter.

The time delay can be set to 0, 3, or 6 seconds, giving you flexibility in how and when the door locks. As a fail-secure device, the bolt automatically engages during a power outage, keeping the door locked for maximum security. The included power supply ensures you can get started right out of the box.

Product FAQs

How strong is this bolt lock?

This lock is built to handle up to 2,600 pounds of holding force, thanks to its solid stainless steel bolt. That makes it a tough and reliable choice for securing doors in both residential and commercial settings.
What happens to the lock if the power goes out?

The VIS-DP102-FSE-LED is fail-secure, which means the bolt will lock in place during a power outage. This helps protect your property by keeping the door locked even if power is lost.
Can I adjust how long the door stays unlocked?

Yes. This lock comes with a time delay feature that lets you choose between 0, 3, or 6 seconds before it locks again. This gives you some control over how fast the door re-secures itself after unlocking.
Is this lock considered an electric deadbolt?

Yes, the VISIONIS DP102-FSE-LED is often called an electric deadbolt because it uses a motorized bolt to lock the door instead of a traditional key. It offers strong security with keyless control and smooth operation.

Download Datasheets and Manuals of this product

VIS-DP102-FSE-LED

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Electric Drop Bolt Lock 2,600lbs Dead Bolt. With LED and Time Delay. Fail Secure Normally Open + Power Supply - FPC-5386

Translation missing: en.products.product.sku:FPC-5386

UPC Code: 614961170483 Weight: 3.0 lb

Regular price: $52.88
Sale price: $52.88
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
