Waterproof keypad and card reader VIS-3000 Visionis

Outdoor standalone keypad and card reader VIS-3000 Visionis

Dimensions Outdoor access control keypad, Visionis VIS-3000, IP68 anti-vandal metal, standalone use

Security Access Control Keypads Visionis VIS-3000

Standalone access control keypads, Visionis VIS-3000, weatherproof metal digital touch keypad

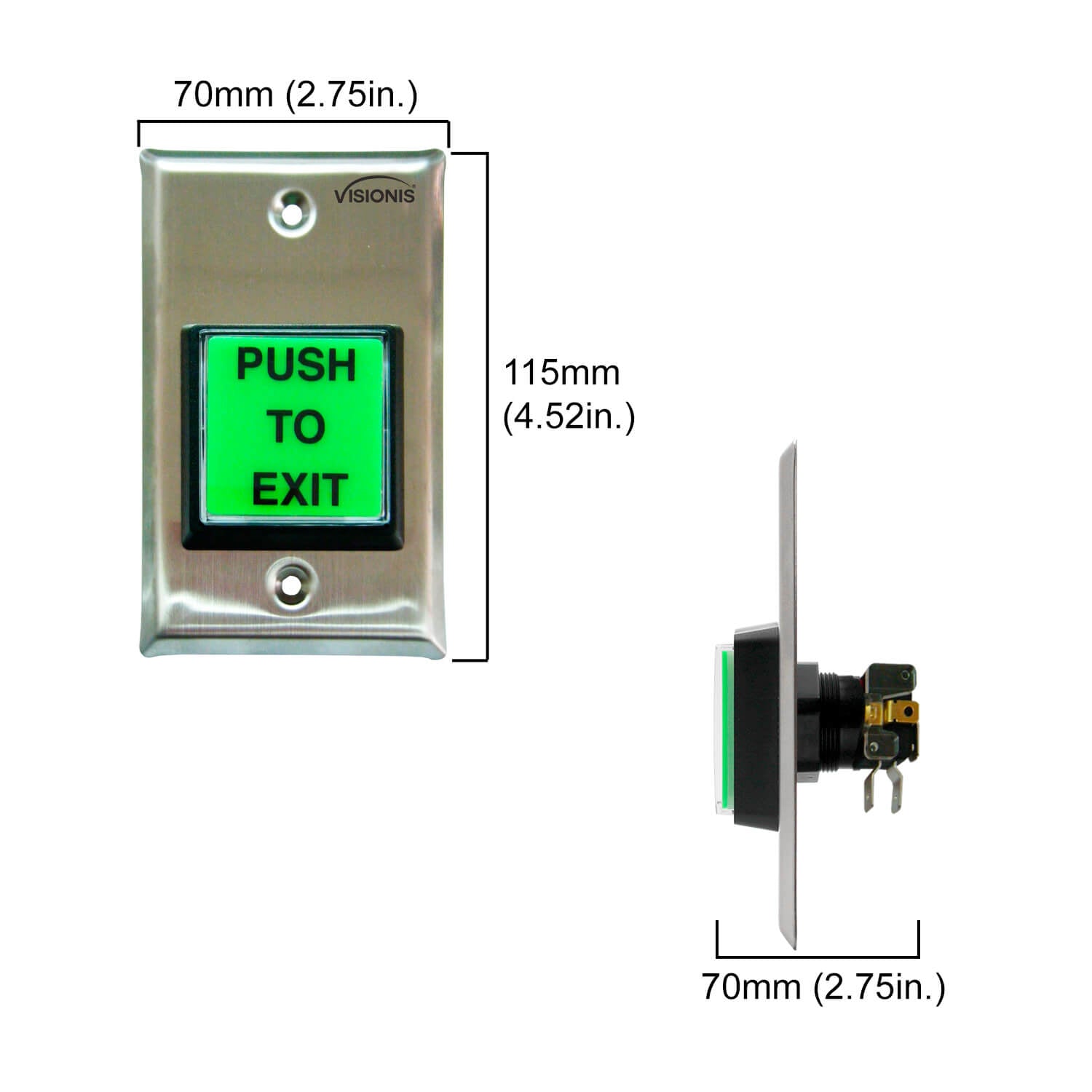

Dimensions Visionis VIS-7000 push to exit button

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(4)

(8)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-3000+: Access Control Indoor + Outdoor Rated IP68 Metal Digital Touch Keypad + Reader Standalone with Mini Controller + Wiegand 26, Wide Design, No Software, EM Cards

VIS-MINI-CNTRL: 1 Door Controller for Access Control Systems with No Software. Up to 1,000 users

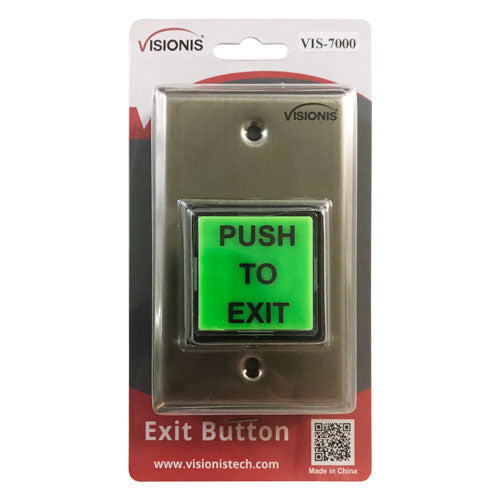

VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm

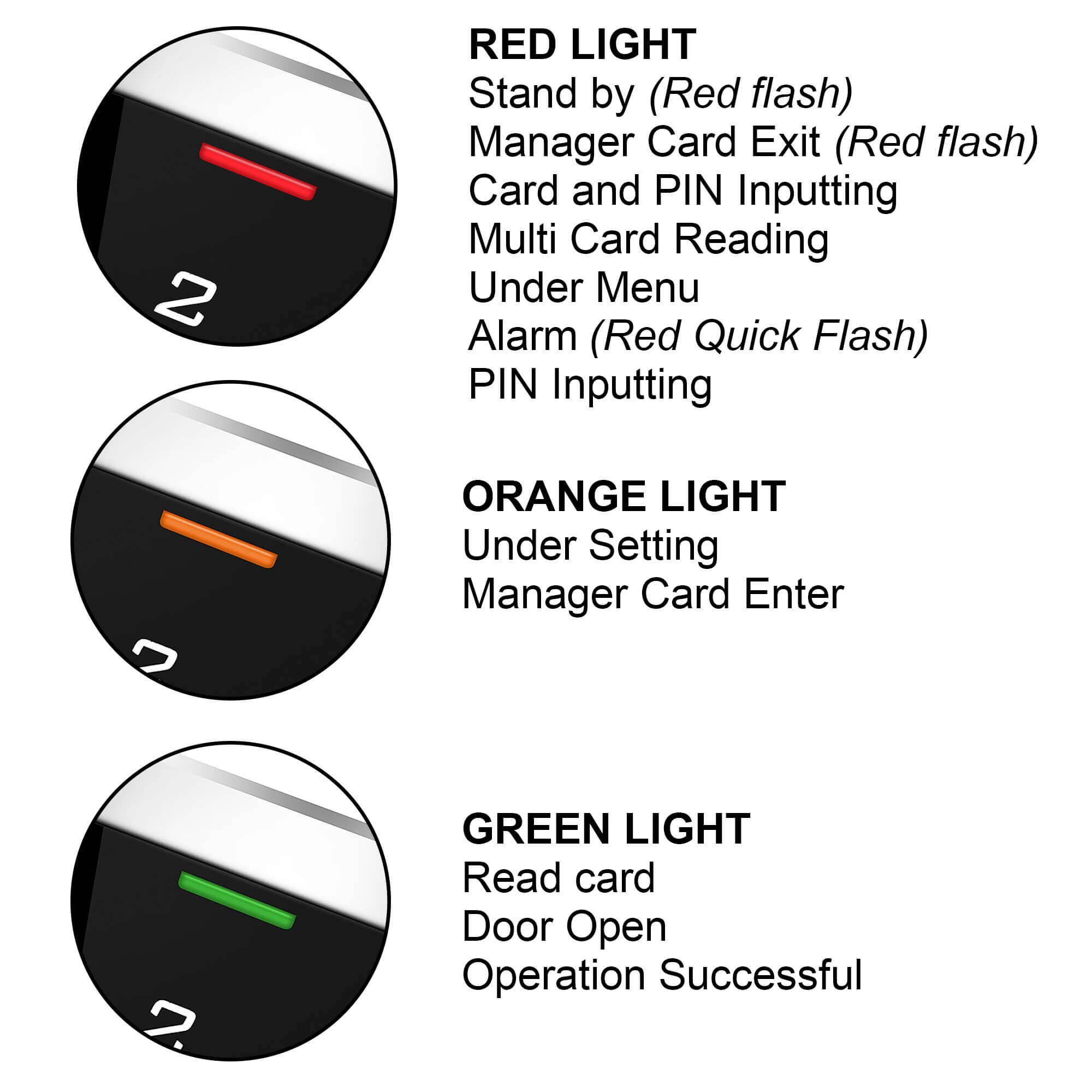

Green/Red LED Indication for EM Lock Status

Model No. VIS-3000:

Input Voltage: DC 12V
Idle Current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Card Transmission Format: Wiegand 26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C ～55° C (-49°F ～131°F)
Operating Humidity: 0%～95%
Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-MINI-CNTRL:

User Capacity: 1,000
Operating Voltage: 9~24V DC
Idle Current: < 20mA
Relay One: (NO, NC, Common)
Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface Input: Wiegand 26~37 bits
Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
Environment: Indoor
Operating Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 0 ~ 90%RH
Physical: ABS Shell
Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
Unit Weight: 40g
Shipping Weight: 100g

Model No. VIS-7000:

Stainless-steel face-plate
"PUSH TO EXIT" & "PRESIONE PARA SALIR" inserts included
Fits into standard single-gang box,Large square green color push button.
12-inch, AWG 18 wire leads
Degree of Protection: IP-40
LED: Yes
LED Life: 20.000 hours
Switch Material: Plastic
Switch Plate Material: Stainless Steel
Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Download Datasheets and Manuals of this product

VIS-ML300LED

VIS-3000

VIS-MINI-CNTRL

VIS-7000

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

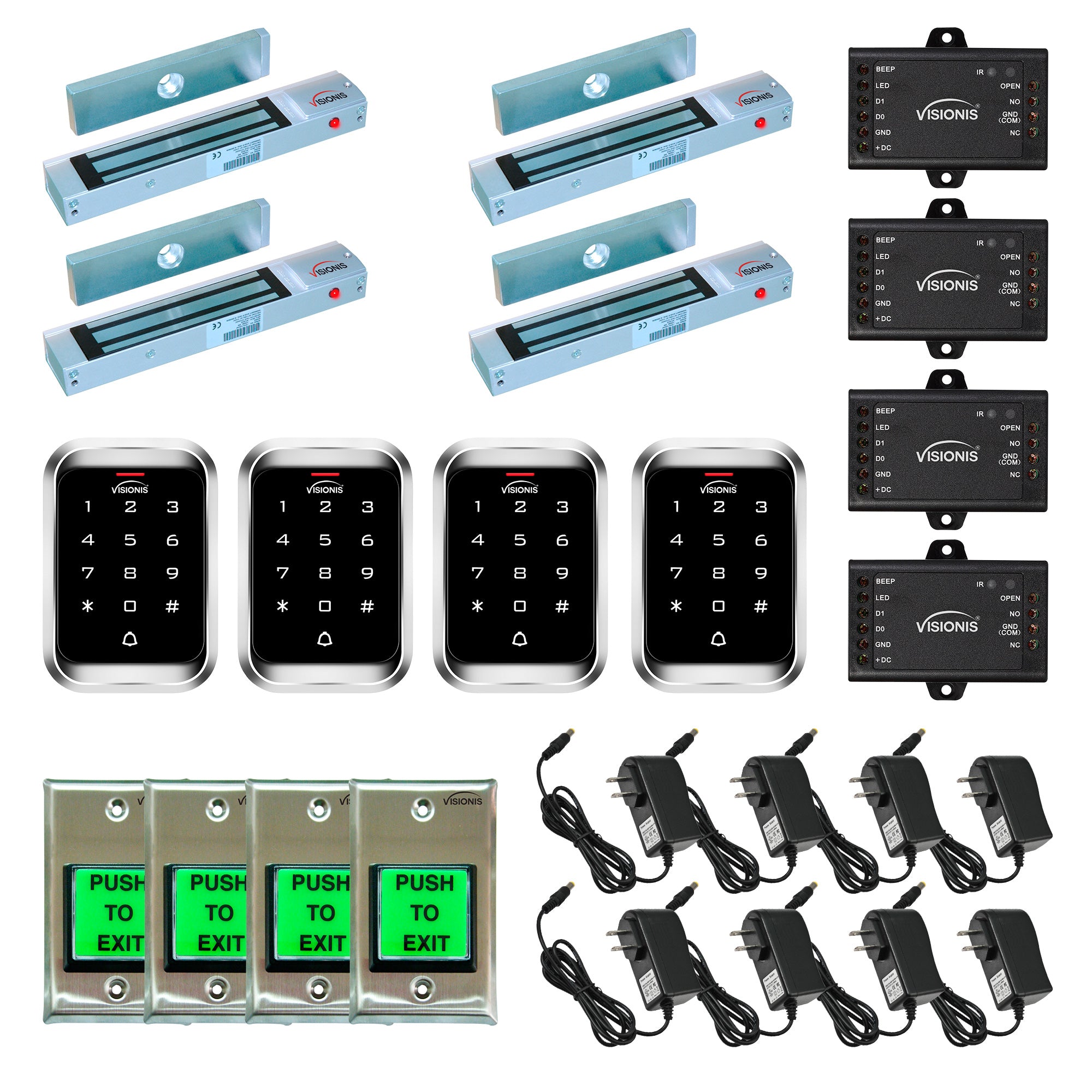

FPC-5134 Four Door Access Control Outswinging Door 300lbs Electromagnetic Lock With Visionis Outdoor Keypad Reader Standalone With Mini Controller + Wiegand 26 + Push To Exit Button Kit

Name: FPC-5134 Four Door Access Control Outswinging Door 300lbs Electromagnetic Lock With Visionis Outdoor Keypad Reader Standalone With Mini Controller + Wiegand 26 + Push To Exit Button Kit
Brand: Visionis
SKU: FPC-5134
Price: 715.0 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:FPC-5134

UPC Code: 701980451096

Product Weight: 20.0 lb

Regular price: $715.00
Sale price: $715.00
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
