Model VIS-ML300LED:

• Voltage Input: 12 VDC / 24 VDC
• Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
• Holding Force: Up to 300 lbs (136 kg)
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Operating Temperature: 0~55° C ( 32~131° F)
• Operating Humidity: 0~95% ( non condensing)
• Weight ( Magnet): 0.6 kg (±1%)
• Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
• Green/Red LED Indication for EM Lock Status

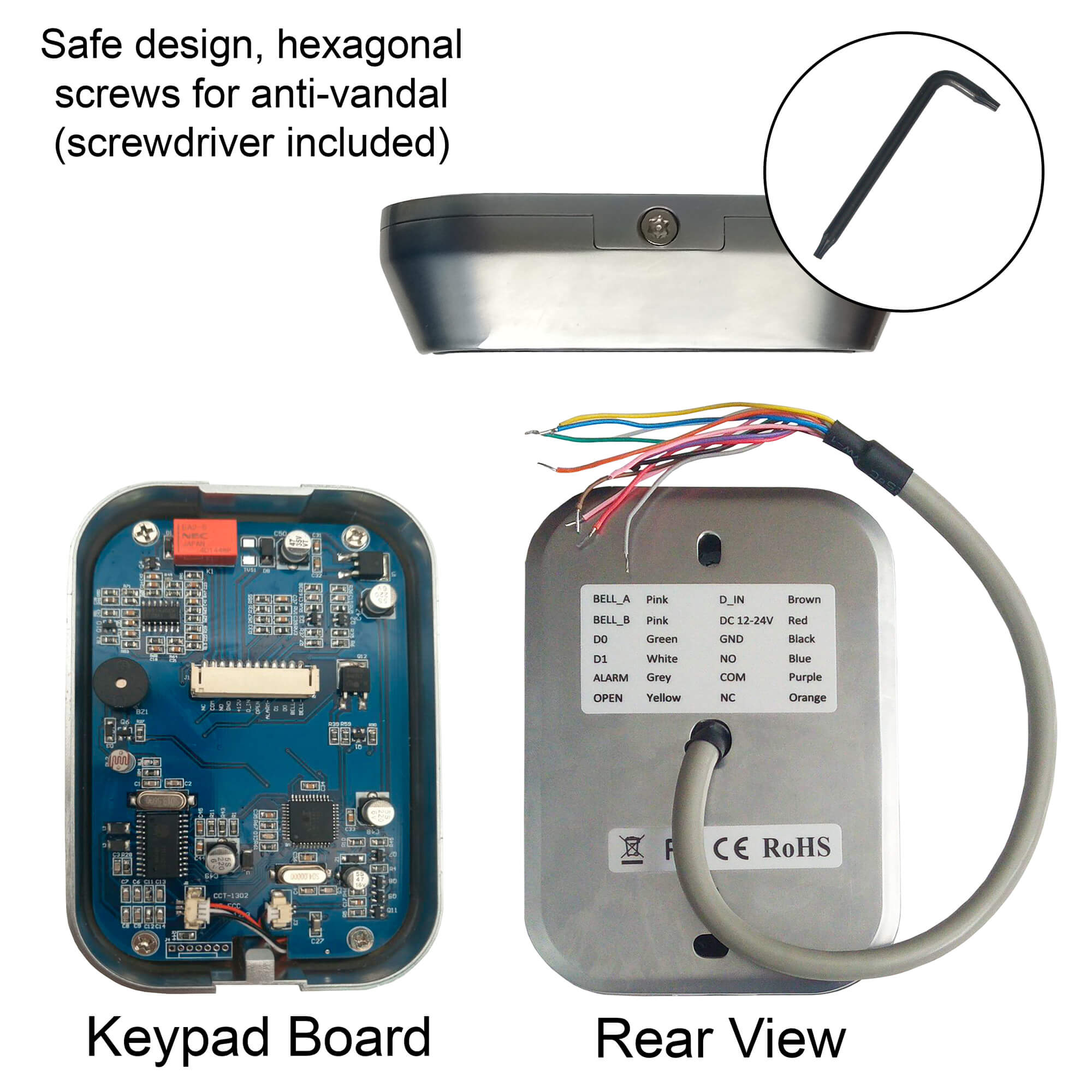

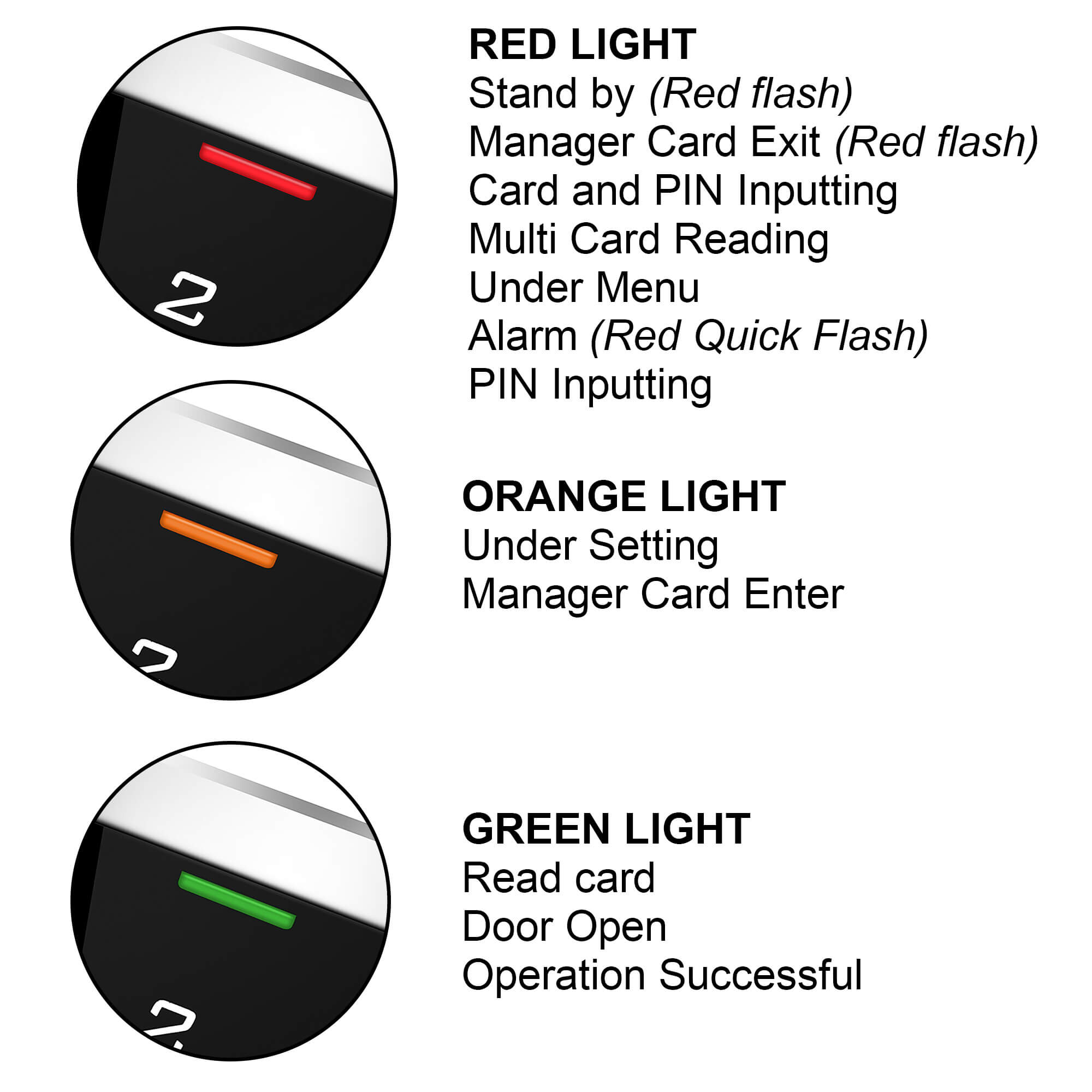

Model No. VIS-3000:

• Input Voltage: DC 12V
• Idle Current: ≤25mA
• Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
• Card Frequency: 125KHz for EM // 13.56MHz for MFR
• Card Transmission Format: Wiegand 26
• Keypad Transmission Format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ～55° C (-49°F ～131°F)
• Operating Humidity: 0%～95%
• Product Size: 118Lx81Wx21H (mm) - 4.64Lx3.18Wx0.82H (in.)
• Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof

Model No. VIS-MINI-CNTRL:

• User Capacity: 1,000
• Operating Voltage: 9~24V DC
• Idle Current: < 20mA
• Relay One: (NO, NC, Common)
• Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
• Lock Output Load: 2 Amp Maximum
• Wiegand Interface Input: Wiegand 26~37 bits
• Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
• Environment: Indoor
• Operating Temperature: -40°C~60°C (-40°F~140°F)
• Operating Humidity: 0 ~ 90%RH
• Physical: ABS Shell
• Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
• Unit Weight: 40g
• Shipping Weight: 100g

Model No. VIS-7000:

• Stainless-steel face-plate
• "PUSH TO EXIT" & "PRESIONE PARA SALIR" inserts included
• Fits into standard single-gang box,Large square green color push button.
• 12-inch, AWG 18 wire leads
• Degree of Protection: IP-40
• LED: Yes
• LED Life: 20.000 hours
• Switch Material: Plastic
• Switch Plate Material: Stainless Steel
• Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Model No. VISCP200:

• Input Voltage Range: AC90V-264V
• Input Frequency Range: 50Hz-60Hz
• Output Voltage Range: DC12V+/-5%
• Output Current: 2A
• Output Power: 24 Watts
• Output Ripple&Noise: ≤46MV
• Output Efficiency: ≥79%
• Environment Operating: -30°C~45°C 20%~90%RH
• Environment Storage Temp.: -40°C~85°C 10%~95%RH
• Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
• Product Weight: 116g
• Certificate: UL, CE, RoHS, FCC
