Description

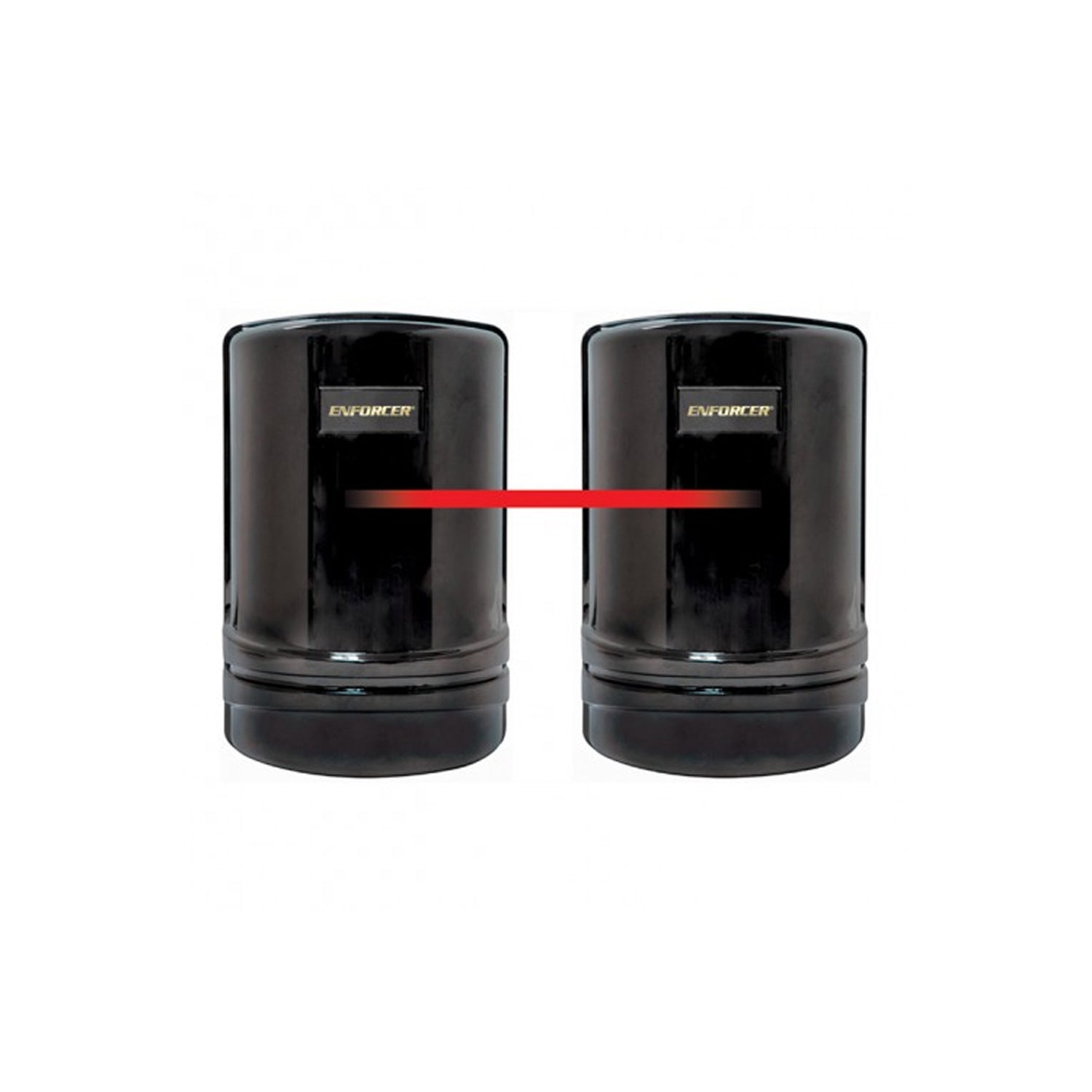

SECO-LARM E-964-S50TB Multi-Frequency Single Photobeam Sensor; 4 selectable frequencies to reduce interference; Up to 50ft (15m) sensing distance; Small size for a less conspicuous installation; Simple to install; Built-in AGC control to filter out lighting disturbances; Signal strength indicator for easier alignment; LED indicators for power, signal strength, and trigger; Weatherproof for outdoor as well as indoor use (IP65); Mounting hardware included.

Key Features

  • 4 selectable frequencies to reduce interference
  • Up to 50ft (15m) sensing distance
  • Small size for a less conspicuous installation
  • Simple to install
  • Built-in AGC control to filter out lighting disturbances
  • Signal strength indicator for easier alignment
  • LED indicators for power, signal strength, and trigger
  • Weatherproof for outdoor as well as indoor use (IP65)
  • Mounting hardware included
Characteristics

  • Number of Beams: 1
  • Current Draw: Transmitter 15mA@12VDC/Receiver 30mA@12VDC
  • Infrared LED Wavelength: 940nm
  • Operating Voltage: 10~24VDC
  • Interupt Speed: 50ms
  • LED Beam Spread Angle: Approximately ±10°
  • LEDs-Red: Indicates transmitter and receiver are not aligned or beam is broken (Alarm)
  • LEDs-Yellow: Indicates receiver’s signal is weak or beam is broken (Signal)
  • LEDs-Green: Indicates connected to power
  • Output: NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC
  • Enclosure: IP65
  • Operating Temperature: -13°~131°F
  • Operating Humidity: 0~95%
  • Dimensions: 3-11/16″ x 2-3/8″ x 1-13/16″
  • Weight: 2.6-oz

Description

SECO-LARM E-964-S50TB Multi-Frequency Single Photobeam Sensor; 4 selectable frequencies to reduce interference; Up to 50ft (15m) sensing distance; Small size for a less conspicuous installation; Simple to install; Built-in AGC control to filter out lighting disturbances; Signal strength indicator for easier alignment; LED indicators for power, signal strength, and trigger; Weatherproof for outdoor as well as indoor use (IP65); Mounting hardware included.

Key Features

  • 4 selectable frequencies to reduce interference
  • Up to 50ft (15m) sensing distance
  • Small size for a less conspicuous installation
  • Simple to install
  • Built-in AGC control to filter out lighting disturbances
  • Signal strength indicator for easier alignment
  • LED indicators for power, signal strength, and trigger
  • Weatherproof for outdoor as well as indoor use (IP65)
  • Mounting hardware included
Characteristics
Packaging of this product

  • Number of Beams: 1
  • Current Draw: Transmitter 15mA@12VDC/Receiver 30mA@12VDC
  • Infrared LED Wavelength: 940nm
  • Operating Voltage: 10~24VDC
  • Interupt Speed: 50ms
  • LED Beam Spread Angle: Approximately ±10°
  • LEDs-Red: Indicates transmitter and receiver are not aligned or beam is broken (Alarm)
  • LEDs-Yellow: Indicates receiver’s signal is weak or beam is broken (Signal)
  • LEDs-Green: Indicates connected to power
  • Output: NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC
  • Enclosure: IP65
  • Operating Temperature: -13°~131°F
  • Operating Humidity: 0~95%
  • Dimensions: 3-11/16″ x 2-3/8″ x 1-13/16″
  • Weight: 2.6-oz

Download Datasheets and Manuals of this product

E-964-S50TB
