This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

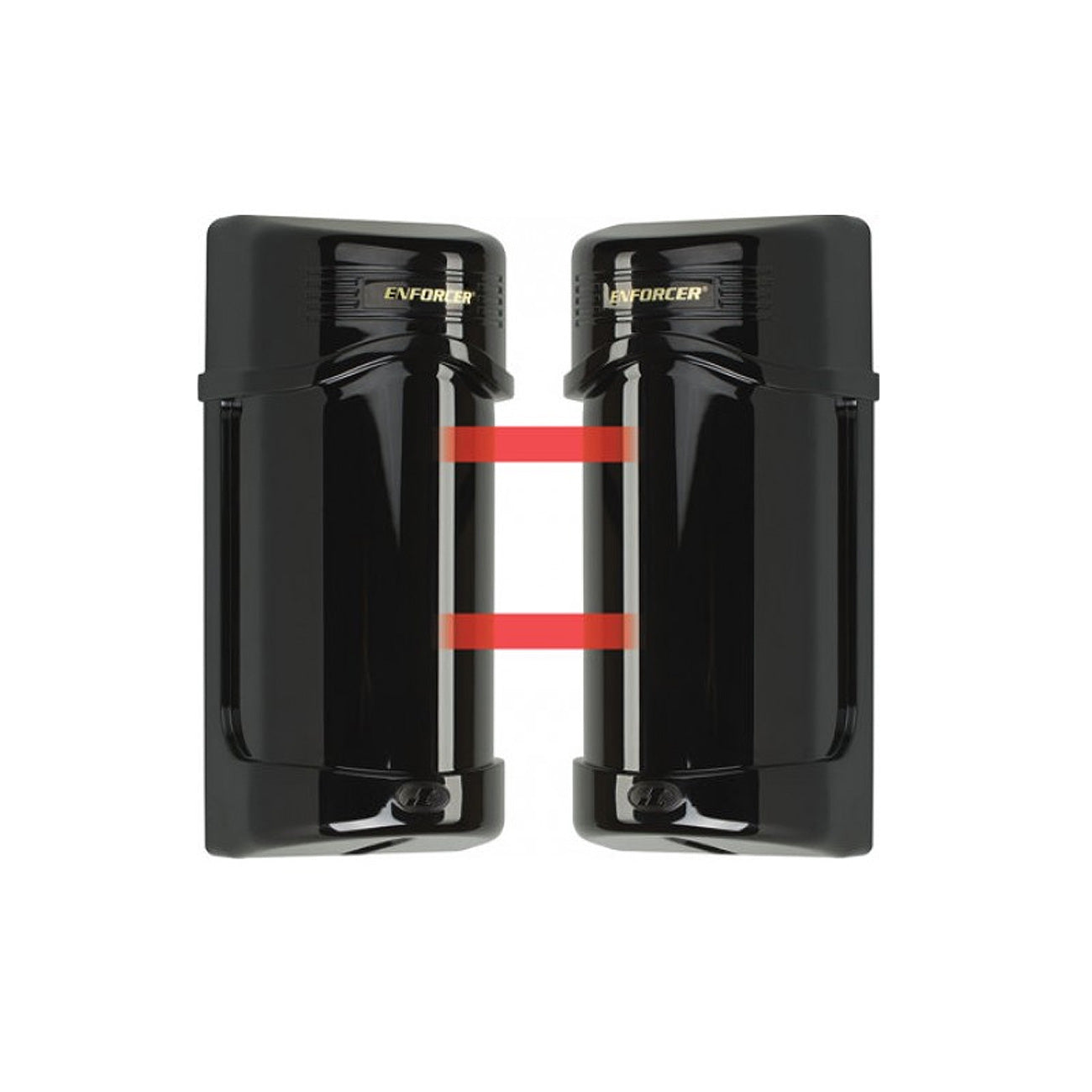

ENFORCER E-960-D190Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors  and outdoors.

  • Built-in laser beam alignment system speeds accurate, reliable positioning
  • Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
  • Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
  • Weatherproof (IP55), sunlight-filtering case for indoor & outdoor use
  • Anti-frost system so that beam functions even in extreme conditions
  • Automatic input power filtering with special noise rejection circuitry
  • NC/NO alarm output
  • N.C. tamper circuit included
  • Non-polarized power inputs
  • Quick, easy installation with built-in laser beam alignment system
  • Interruption time adjustable for nearly all situations
Characteristics

  • Current Draw: 70mA
  • Sensing Range: Outdoor- 190′ (60m), Indoor- 390′ (120m)
  • Operating Voltage: 10~30VAC/VDC (Non-polarized)
  • Interupt Speed: 50msec~700msec (variable)
  • LEDs – Red: Alarm LED (Receiver) ON: When an alarm is initiated
  • LEDs – Yellow: ON: When receiver’s signal is weak or when beam is broken
  • LEDs – Green: Operation LED (transmitter & receiver) ON: When power is applied.
  • Detection System: Simultaneous break of 2 beams
  • Alarm Output: NO/NC relay, 1A @ 120VAC, min. 1 sec.
  • Tamper Output: NC switch, 1A@120VAC
  • Case material: PC Resin
  • Laser Wavelength: 650nm
  • Operating Temperature: -13º~+131ºF (-25º~+55ºC)
  • Laser Output Power: <5mW
  • Alignment Angle: Horizontal (+/-)90º, Vertical: (+/-)5º
  • Weight: 2.5-lb (1.1kg)

Description

ENFORCER E-960-D190Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors  and outdoors.

  • Built-in laser beam alignment system speeds accurate, reliable positioning
  • Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
  • Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
  • Weatherproof (IP55), sunlight-filtering case for indoor & outdoor use
  • Anti-frost system so that beam functions even in extreme conditions
  • Automatic input power filtering with special noise rejection circuitry
  • NC/NO alarm output
  • N.C. tamper circuit included
  • Non-polarized power inputs
  • Quick, easy installation with built-in laser beam alignment system
  • Interruption time adjustable for nearly all situations
Characteristics
Packaging of this product

  • Current Draw: 70mA
  • Sensing Range: Outdoor- 190′ (60m), Indoor- 390′ (120m)
  • Operating Voltage: 10~30VAC/VDC (Non-polarized)
  • Interupt Speed: 50msec~700msec (variable)
  • LEDs – Red: Alarm LED (Receiver) ON: When an alarm is initiated
  • LEDs – Yellow: ON: When receiver’s signal is weak or when beam is broken
  • LEDs – Green: Operation LED (transmitter & receiver) ON: When power is applied.
  • Detection System: Simultaneous break of 2 beams
  • Alarm Output: NO/NC relay, 1A @ 120VAC, min. 1 sec.
  • Tamper Output: NC switch, 1A@120VAC
  • Case material: PC Resin
  • Laser Wavelength: 650nm
  • Operating Temperature: -13º~+131ºF (-25º~+55ºC)
  • Laser Output Power: <5mW
  • Alignment Angle: Horizontal (+/-)90º, Vertical: (+/-)5º
  • Weight: 2.5-lb (1.1kg)
