This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

Features:

  • UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
  • Anodized aluminum housing (US 28)
  • 12/24VDC selectable
  • MOV surge protection.
  • Adjustable mounting bracket.
  • Complete mounting hardware for typical installations.
  • “L” bracket and “Z” brackets available for easy mounting.
  • Detachable faceplate
Characteristics

Model No. E-941SA-600:

  • Holding Force: 600-lb (272kg)
  • Operating Voltage: 12 or 24 VDC±10%
  • Current Draw: 500mA@12VDC, 250mA@24VDC
  • Operating Temperature: 14º ~ 131º F (-10º ~ 55º C)
  • Electromagnet Dimensions: 9-7/8"x1"x1-5/8" (250x25x42 mm
  • Armature Dimensions: 7-1/4"x1/2"x1-1/2" (185x12x38 mm)
  • Case Shipping Weight: 47-lb (22kg)
  • Weight: 4-lb 6-oz (2kg)


Description

Features:

  • UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
  • Anodized aluminum housing (US 28)
  • 12/24VDC selectable
  • MOV surge protection.
  • Adjustable mounting bracket.
  • Complete mounting hardware for typical installations.
  • “L” bracket and “Z” brackets available for easy mounting.
  • Detachable faceplate
Characteristics
Packaging of this product

Model No. E-941SA-600:

  • Holding Force: 600-lb (272kg)
  • Operating Voltage: 12 or 24 VDC±10%
  • Current Draw: 500mA@12VDC, 250mA@24VDC
  • Operating Temperature: 14º ~ 131º F (-10º ~ 55º C)
  • Electromagnet Dimensions: 9-7/8"x1"x1-5/8" (250x25x42 mm
  • Armature Dimensions: 7-1/4"x1/2"x1-1/2" (185x12x38 mm)
  • Case Shipping Weight: 47-lb (22kg)
  • Weight: 4-lb 6-oz (2kg)

Download Datasheets and Manuals of this product

E-941SA-600

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

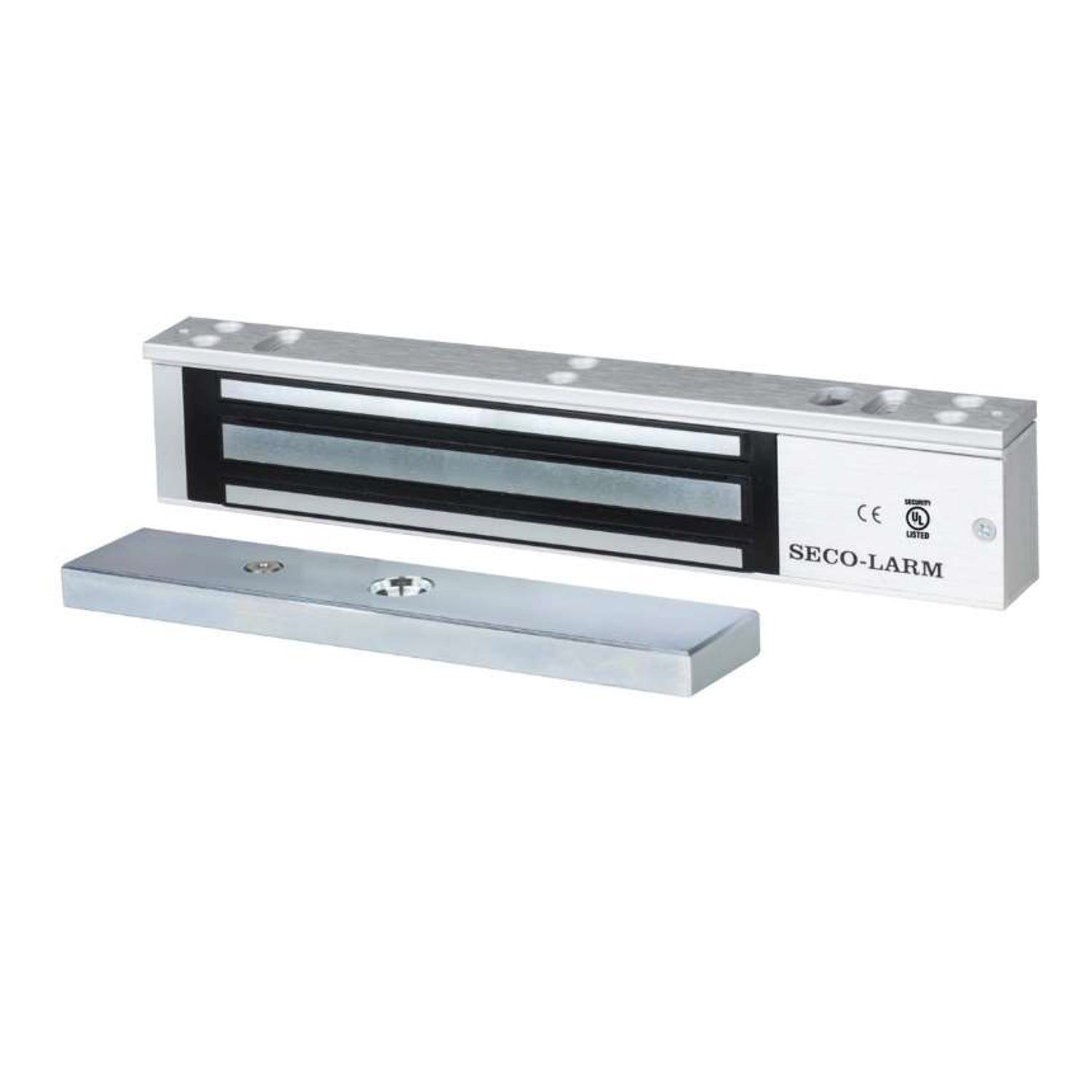

E-941SA-600 Seco-Larm Enforcer Single Door Electromagnetic Lock With 600lbs Holding Force

Translation missing: en.products.product.sku:E-941SA-600

UPC Code: 676544000730
Product Weight: 5.0 lb
Regular price
$78.00
Sale price
$78.00
Regular price
Shipping calculated at checkout.

Out of Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
