This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

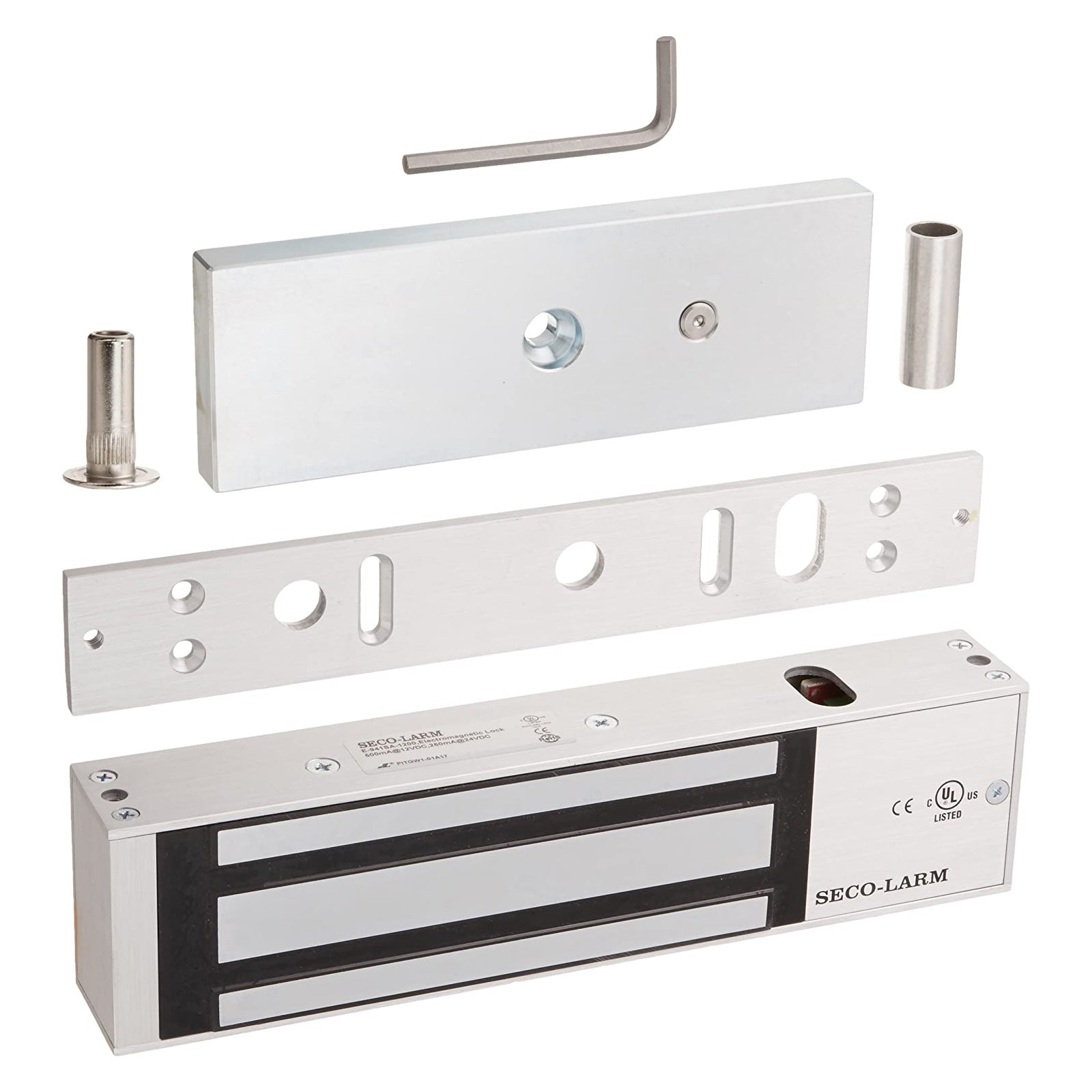

The Seco-Larm Electromagnetic Lock secure mounts to your point of entry, keeping your door securely with up to 1200 pounds of holding force closed until you release the powerful magnet manually through your hardwired security system or via remote control.

Features:

  • UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
  • Anodized aluminum housing (US28)
  • 12/24VDC selectable
  • MOV surge protection.
  • Adjustable mounting bracket.
  • Complete mounting hardware for typical installations.
  • “L” bracket and “Z” brackets available for easy mounting.
  • Detachable faceplate
Characteristics

Model No. E-941SA-1200:

  • Holding Force: 1,200-lb (545kg)
  • Operating Voltage: 12/24 VDC±10%
  • Current Draw: 500mA@12VDC, 250mA@24VDC
  • Operating Temperature: 14º~131º F (-10º~55º C)
  • Electromagnet Dimensions: 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
  • Armature Dimensions: 7-1/4"x5/8"x2-3/8" (185x16x61 mm)
  • Case Shipping Weight: 54-lb (24.5kg)
  • Weight: 11-lb (5kg)

Description

The Seco-Larm Electromagnetic Lock secure mounts to your point of entry, keeping your door securely with up to 1200 pounds of holding force closed until you release the powerful magnet manually through your hardwired security system or via remote control.

Features:

  • UL 10C, USA and Canada, UL 294 (Access Control System Units) , UL 1034 (Burglary-Resistant Electric Lock Mechanism), and UL 864 (Fire Alarm Systems) USA
  • Anodized aluminum housing (US28)
  • 12/24VDC selectable
  • MOV surge protection.
  • Adjustable mounting bracket.
  • Complete mounting hardware for typical installations.
  • “L” bracket and “Z” brackets available for easy mounting.
  • Detachable faceplate
Characteristics
Packaging of this product

Model No. E-941SA-1200:

  • Holding Force: 1,200-lb (545kg)
  • Operating Voltage: 12/24 VDC±10%
  • Current Draw: 500mA@12VDC, 250mA@24VDC
  • Operating Temperature: 14º~131º F (-10º~55º C)
  • Electromagnet Dimensions: 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
  • Armature Dimensions: 7-1/4"x5/8"x2-3/8" (185x16x61 mm)
  • Case Shipping Weight: 54-lb (24.5kg)
  • Weight: 11-lb (5kg)

Download Datasheets and Manuals of this product

E-941SA-1200

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

E-941SA-1200 Seco-Larm Electromagnetic Lock With 1200 Lb. Holding Force

E-941SA-1200

UPC Code: 676544000709
Product Weight: 11.0 lb
$101.40
$101.40
Shipping calculated at checkout.

Out of Stock
