This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

Features:

  • Anodized aluminum housing (US 28)
  • 12 or 24 VDC (selectable)
  • No residual magnetism
  • Adjustable mounting bracket
  • MOV surge protection
  • Complete mounting hardware for typical installations
  • “L”, “Z” and “U” brackets available for easy mounting
  • Detachable face plate
  • UL and ULC listed
  • CE listed
  • RoHS compliant
Characteristics

  • Holding Force: 600-lb (272kg) per door
  • Operating Voltage: 12 or 24 VDC ±10%
  • Current Draw: 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)
  • Operating Temperature: 14º~131º F (-10º~55º C)
  • Certification: UL, ULC, CE
  • Electromagnet Dimensions: 19-11/16″ x 1-5/8″ x 1-1/16″ (500x40x26 mm)
  • RoHS Compliance: Yes
  • Armature Dimensions: 7-1/4″x1/2″x1-1/2″ (185x12x38 mm)
  • Weight: 9-lb (4kg)

Description

Features:

  • Anodized aluminum housing (US 28)
  • 12 or 24 VDC (selectable)
  • No residual magnetism
  • Adjustable mounting bracket
  • MOV surge protection
  • Complete mounting hardware for typical installations
  • “L”, “Z” and “U” brackets available for easy mounting
  • Detachable face plate
  • UL and ULC listed
  • CE listed
  • RoHS compliant
Characteristics
Packaging of this product

  • Holding Force: 600-lb (272kg) per door
  • Operating Voltage: 12 or 24 VDC ±10%
  • Current Draw: 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)
  • Operating Temperature: 14º~131º F (-10º~55º C)
  • Certification: UL, ULC, CE
  • Electromagnet Dimensions: 19-11/16″ x 1-5/8″ x 1-1/16″ (500x40x26 mm)
  • RoHS Compliance: Yes
  • Armature Dimensions: 7-1/4″x1/2″x1-1/2″ (185x12x38 mm)
  • Weight: 9-lb (4kg)

Download Datasheets and Manuals of this product

E-941DA-600Q

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

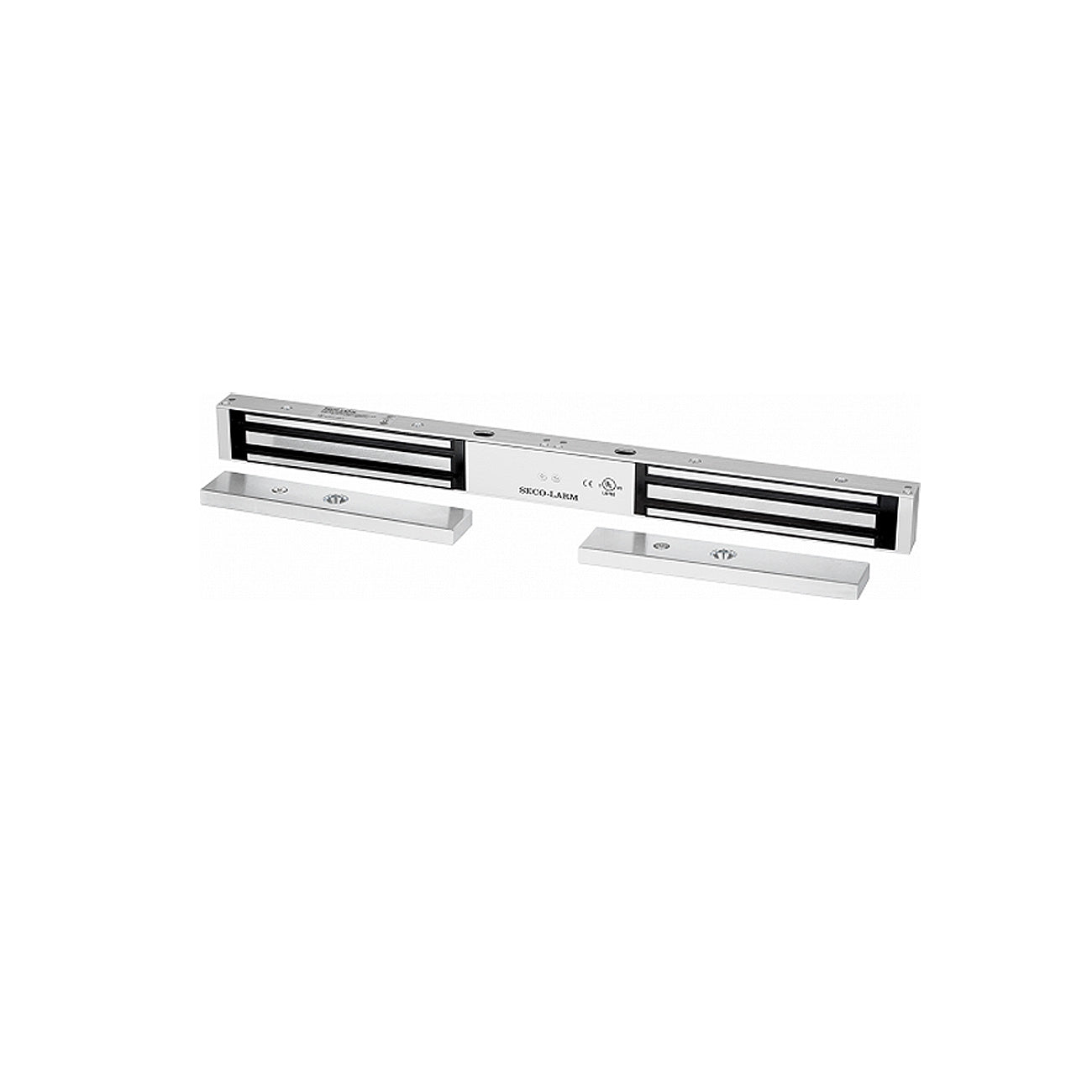

E-941DA-600Q Seco-Larm Electromagnetic Double-Door Maglock, 600-Lb (272kg) Holding Force, 12 Or 24 VDC (Selectable), No Residual Magnetism, Adjustable Mounting Bracket, Detachable Face Plate

E-941DA-600Q

UPC Code: 676544009818
Product Weight: 9.0 lb
$170.00
$170.00
Shipping calculated at checkout.

Out of Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
