This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

Features:

  • For outdoor gates, garage doors, etc.
  • Weatherproof (IP55) construction for indoor/outdoor use
  • Anti-condensation housing
  • Dual-color LED alignment system
  • Form C relay: 500mA@30VAC/VDC
  • Tamper switch: N.C. 500mA@30VAC/VDC
  • 31/4” (82mm) Round reflector with hood included
  • Compact size
  • Monitored output: N.C., 10kΩ Resistor

 Typical Applications

  • For garage or overhead doors, outdoor gates
  • Industrial automation: detect objects on manufacturing line
Characteristics

  • Type: Reflective photoelectric beam sensor
  • Current Draw: Standby – 55mA@12VDC, Active – 40mA@12VDC
  • Sensing Range: Up to 50′ (15m)
  • Operating Voltage: 12-30V DC/AC 60Hz, 100mA
  • Reaction time: 10ms
  • Light Source: IR LED
  • LEDs – Red: Solid, No beam signal, triggered
  • LEDs – Green: Solid, Good beam signal, properly aligned
  • LEDs: Alternating Flash – Poor beam signal
  • Alarm Output: SPDT relay output (NO/NC/COM)
  • Switching Capacity: 500mA@30VAC/VDC
  • Tamper Switch: 500mA@30VAC/VDC
  • Operating Temperature: -13º~140º F (-25º~60º C)
  • Enclosure: IP55


Description

Features:

  • For outdoor gates, garage doors, etc.
  • Weatherproof (IP55) construction for indoor/outdoor use
  • Anti-condensation housing
  • Dual-color LED alignment system
  • Form C relay: 500mA@30VAC/VDC
  • Tamper switch: N.C. 500mA@30VAC/VDC
  • 31/4” (82mm) Round reflector with hood included
  • Compact size
  • Monitored output: N.C., 10kΩ Resistor

 Typical Applications

  • For garage or overhead doors, outdoor gates
  • Industrial automation: detect objects on manufacturing line
Characteristics
Packaging of this product

  • Type: Reflective photoelectric beam sensor
  • Current Draw: Standby – 55mA@12VDC, Active – 40mA@12VDC
  • Sensing Range: Up to 50′ (15m)
  • Operating Voltage: 12-30V DC/AC 60Hz, 100mA
  • Reaction time: 10ms
  • Light Source: IR LED
  • LEDs – Red: Solid, No beam signal, triggered
  • LEDs – Green: Solid, Good beam signal, properly aligned
  • LEDs: Alternating Flash – Poor beam signal
  • Alarm Output: SPDT relay output (NO/NC/COM)
  • Switching Capacity: 500mA@30VAC/VDC
  • Tamper Switch: 500mA@30VAC/VDC
  • Operating Temperature: -13º~140º F (-25º~60º C)
  • Enclosure: IP55

Download Datasheets and Manuals of this product

E-931-S50RRGQ

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

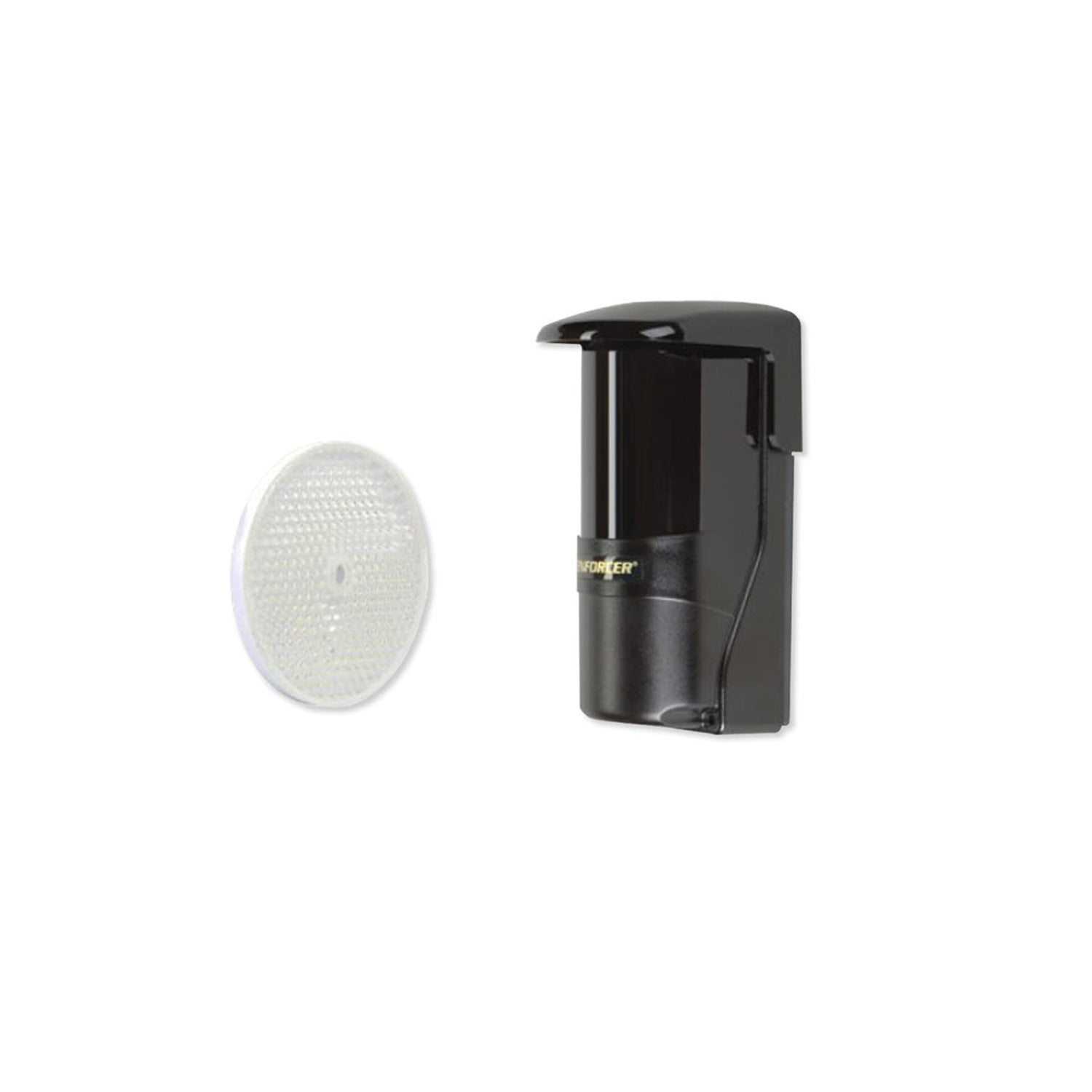

E-931-S50RRGQ Seco-Larm Enforcer IR Reflective Photoelectric Beam Sensor, 50 Ft.

Translation missing: en.products.product.sku:E-931-S50RRGQ

UPC Code: 676544017318
Product Weight: 1.0 lb
