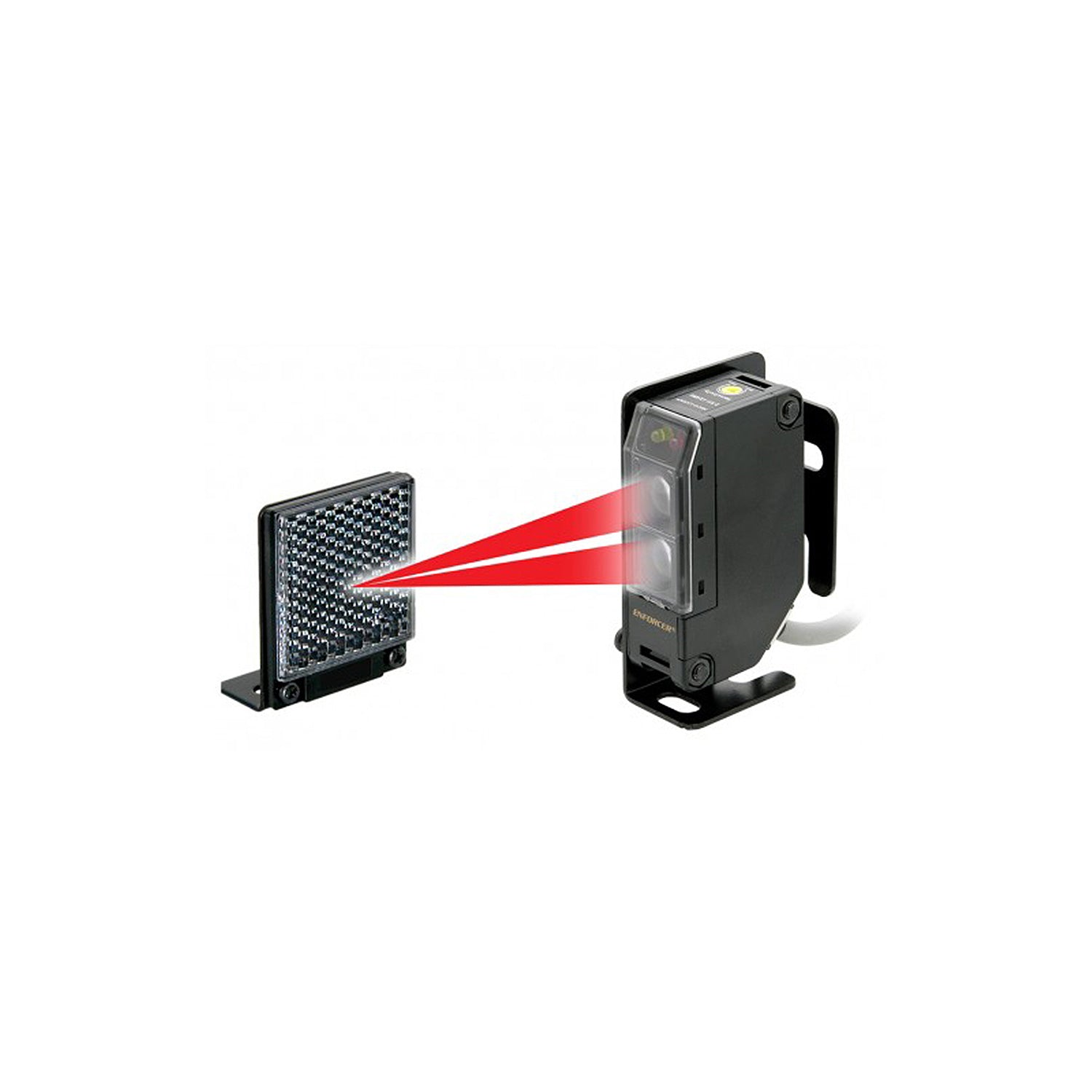

E-931-S35RRQ Seco-Larm Enforcer Indoor/Outdoor Wall Mounted Photoelectric Beam Sensor
    E-931-S35RRQ Seco-Larm Enforcer Indoor/Outdoor Wall Mounted Photoelectric Beam Sensor
E-931-S35RRQ Seco-Larm Enforcer Indoor/Outdoor Wall Mounted Photoelectric Beam Sensor
E-931-S35RRQ Seco-Larm Enforcer Indoor/Outdoor Wall Mounted Photoelectric Beam Sensor
    E-931-S35RRQ Seco-Larm Enforcer Indoor/Outdoor Wall Mounted Photoelectric Beam Sensor
E-931-S35RRQ Seco-Larm Enforcer Indoor/Outdoor Wall Mounted Photoelectric Beam Sensor

This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

Seco-Larm E-931-S35RRQ NIR Reflective Photoelectric Sensor; For outdoors gates, garage doors, etc; Weatherproof (IP66) construction for indoor/outdoor usage; Adjustable sensing distance

Key Features

  • For outdoors gates, garage doors, overhead doors.  Also used for industrial automation to detect objects on manufacturing line
  • Weatherproof (IP66) construction for indoor/outdoor usage
  • Dark ON operation
  • Adjustable sensing distance
  • Compact size
  • 12~240VDC / 24~240VAC Operation
  • Current: Up to 40mA@12VDC
  • Bracket and mounting hardware Included
  • Pre-wired 6ft (1.83m) cord
  • New single-gang box and wall-mount brackets available



Notes:

  • Make sure to install it correctly so it doesn’t close the gate when the car is in way.  Contact Seco-Larm for assistance.
  • This unit won’t work with Aleco systems.
Characteristics
  • Sensing Range: 0.5′ to 35′ (0.1 – 11m)
  • Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA
  • Operating Voltage: 12~240VDC or 24~240VAC.  Power source sold separately.
  • Response Time: 10ms (Max)
  • Light Source: IR LED
  • LEDs – Red: Active
  • LEDs – Yellow: Standby
  • Output: SPDT Relay Output
  • Switching Capacity: 250VAC/1A, 30VDC/2A
  • Enclosure: IP66 Waterproof
  • Operating Temperature: -4º~131ºF (-20º~55ºC)
Description

Seco-Larm E-931-S35RRQ NIR Reflective Photoelectric Sensor; For outdoors gates, garage doors, etc; Weatherproof (IP66) construction for indoor/outdoor usage; Adjustable sensing distance

Key Features

  • For outdoors gates, garage doors, overhead doors.  Also used for industrial automation to detect objects on manufacturing line
  • Weatherproof (IP66) construction for indoor/outdoor usage
  • Dark ON operation
  • Adjustable sensing distance
  • Compact size
  • 12~240VDC / 24~240VAC Operation
  • Current: Up to 40mA@12VDC
  • Bracket and mounting hardware Included
  • Pre-wired 6ft (1.83m) cord
  • New single-gang box and wall-mount brackets available



Notes:

  • Make sure to install it correctly so it doesn’t close the gate when the car is in way.  Contact Seco-Larm for assistance.
  • This unit won’t work with Aleco systems.
Characteristics
Packaging of this product
  • Sensing Range: 0.5′ to 35′ (0.1 – 11m)
  • Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA
  • Operating Voltage: 12~240VDC or 24~240VAC.  Power source sold separately.
  • Response Time: 10ms (Max)
  • Light Source: IR LED
  • LEDs – Red: Active
  • LEDs – Yellow: Standby
  • Output: SPDT Relay Output
  • Switching Capacity: 250VAC/1A, 30VDC/2A
  • Enclosure: IP66 Waterproof
  • Operating Temperature: -4º~131ºF (-20º~55ºC)
Download Datasheets and Manuals of this product

E-931-S35RRQ
