Double Maglock. Up to 600 lbs VIS-600D-LED Visionis

Double Door Maglock Features VIS-600D-LED Visionis

Double door maglock. Up to 600 lbs VIS-600D-LED Visionis

Double Door Magnetic Lock. Up to 600 lbs Dimensions VIS-600D-LED Visionis

L and Z Bracket For 600lbs Electromagnetic Lock VIS-ZL600

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

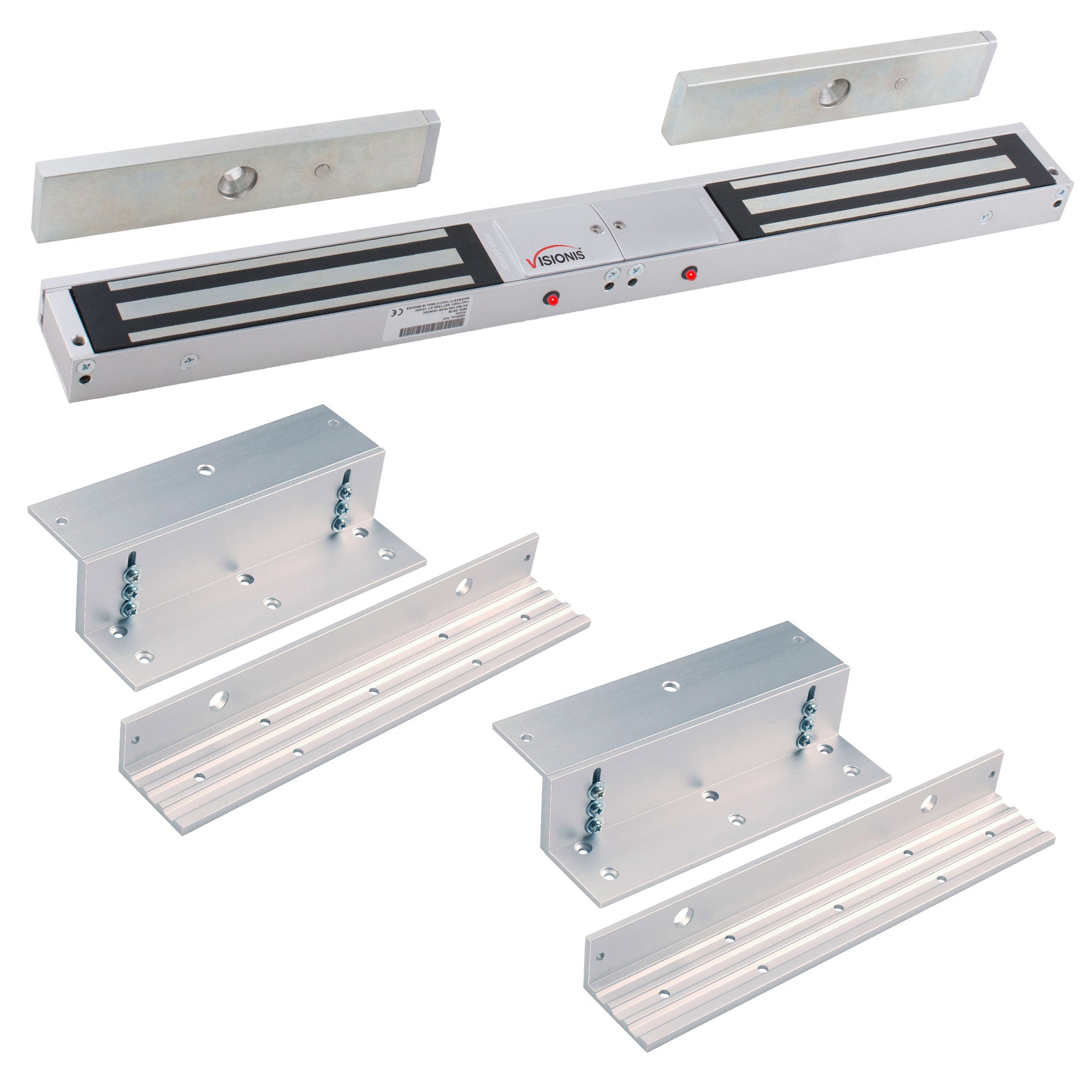

Kit Includes:

(1)

VIS-600D-LED: Double Door Maglock 600lbs With LED Sensor

VIS-ZL600: L and Z Bracket For 600lbs Electromagnetic Lock

Description

IMPORTANT: These product do not include a power supply.

NOTE: This is a Fail Safe or Normally Close double door magnetic lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Main Features

Holding Force

Up to 600 lbs x 2 (272 kg x 2)

Voltage Input

12 VDC / 24 VDC

Applications

Indoor Only

Secure In-Swinging Doors with Included ZL Brackets

This double door magnetic lock kit comes with two ZL brackets, making it easy to install on in-swinging double doors. These brackets provide a secure and stable mounting solution, ensuring the electromagnetic lock functions effectively even when the doors swing inward.

LED Indicators

Built-in LED indicators provide real-time lock status, adding an extra layer of control and convenience.

RED = Maglock Released

GREEN = Maglock Locked

Double electromagnetic lock 600lbs holding force

Energy-Efficient and Safe

This double maglock runs on 12VDC or 24VDC, allowing flexibility in power setup. Its low power consumption makes it cost-effective for continuous use, while surge and spike protection and anti-tamper features ensure durability and long-term reliability.

Double door maglock for access control VIS-600D-LED Visionis

Works Seamlessly with Standalone Systems or Access Control Panels

The VIS-600D-LED can be used as a standalone lock with simple push-to-exit buttons, or it can be integrated into an advanced access control system.

When connected to an access control panel, it allows for keycard access, PIN codes, biometric readers, and remote monitoring, giving you complete control over who enters and exits.

Characteristics

Model No. VIS-600D-LED:

Size: 500Lx42Wx25H (mm) - 19.68Lx1.65Wx0.98H (in.)
Armature Plate Dimension: 180Lx38Wx11H (mm) - 7.08Lx1.50Wx0.43H (in.)
Holding Force: 600 lbs x 2 (272 kg x 2)
Input Voltage: 12 or 24VDC
Current: 12V/500mA*2 or 24V/250mA*2
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight: 3.8 kg (±1%) - 8.37 lbs

Model No. VIS-ZL600:

L and Z bracket for 600lbs electromagnetic lock

Description

IMPORTANT: These product do not include a power supply.

NOTE: This is a Fail Safe or Normally Close double door magnetic lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.

Does it have a time delay or timer function?

No, it doesn't.

What payment methods do you accept?

We accept credit card, Amazon Pay, Google Pay, PayPal, Shop Pay.

Download Datasheets and Manuals of this product

VIS-600D-LED

VIS-ZL600

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Double Door Maglock VIS-600D-LED. Up to 600 lbs x2 (272 kg x2) of Holding Force. 12 VDC / 24 VDC + L and Z Bracket For Inswinging Door - FPC-8906 Visionis

Translation missing: en.products.product.sku:FPC-8906

UPC Code: 718910359902 Weight: 14.0 lb

Dual Voltage Selectable (12 VDC or 24 VDC)
Green/Red LED Indication for EM Lock Status
Magnet Dimensions: 500(L)x42(W)x25(T) mm - 19.68(L)x1.65(W)x0.98(T) in.
Armature Plate Dimensions: 180(L)x38(W)x11(T) mm - 7.08(L)x1.50(W)x0.43(T) in.

Regular price: $157.88
Sale price: $157.88
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
