This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description
The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.


Features:

  • For use with door closers to control the release and closing of residential, commercial, and public area doors
  • Adjustable armature plate reduces installation time and adjusts to door alignment changes
  • Low profile design
  • Holding force – 33-lb (15kg)
  • 3 voltages: 12/24 VAC/VDC, and 120VAC
  • Cast aluminum faceplate
  • No residual magnetism for easy release
  • Built-in voltage spike suppressor
  • Use with SECO-LARM door closers
  • Optional extension bars available: 1/2“, 3/4“, 1″, 2″, 3″, 4″, 5″, 6″, 7” (13mm, 19mm, 25mm, 50mm, 76mm, 102mm, 127mm, 152mm, 178mm)
Characteristics

  • Holding Force: 33-lb (15kg)
  • Installation: Flush-mount
  • Operating Voltage: 12/24 VAC/VDC, 120VAC
  • Current Draw: 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31m@24VDC, 24mA@120VAC
  • Magnet Box Weight: 1-lb 1.5-oz (468g)
  • Door Armature Weight: 8.1-oz (230g)
  • Electromagnet Dimensions: 2-3/4″ x 4-9/16″ x 2-1/16″ (70 x 116.5 x 52 mm)
  • Armature Dimensions: 2-9/16″ x 2-9/16″x 1-9/16″ (65 x 65 x 40 mm)

Description
The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.


Features:

  • For use with door closers to control the release and closing of residential, commercial, and public area doors
  • Adjustable armature plate reduces installation time and adjusts to door alignment changes
  • Low profile design
  • Holding force – 33-lb (15kg)
  • 3 voltages: 12/24 VAC/VDC, and 120VAC
  • Cast aluminum faceplate
  • No residual magnetism for easy release
  • Built-in voltage spike suppressor
  • Use with SECO-LARM door closers
  • Optional extension bars available: 1/2“, 3/4“, 1″, 2″, 3″, 4″, 5″, 6″, 7” (13mm, 19mm, 25mm, 50mm, 76mm, 102mm, 127mm, 152mm, 178mm)
Characteristics
Packaging of this product

  • Holding Force: 33-lb (15kg)
  • Installation: Flush-mount
  • Operating Voltage: 12/24 VAC/VDC, 120VAC
  • Current Draw: 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31m@24VDC, 24mA@120VAC
  • Magnet Box Weight: 1-lb 1.5-oz (468g)
  • Door Armature Weight: 8.1-oz (230g)
  • Electromagnet Dimensions: 2-3/4″ x 4-9/16″ x 2-1/16″ (70 x 116.5 x 52 mm)
  • Armature Dimensions: 2-9/16″ x 2-9/16″x 1-9/16″ (65 x 65 x 40 mm)

Download Datasheets and Manuals of this product

DH-171SQ

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

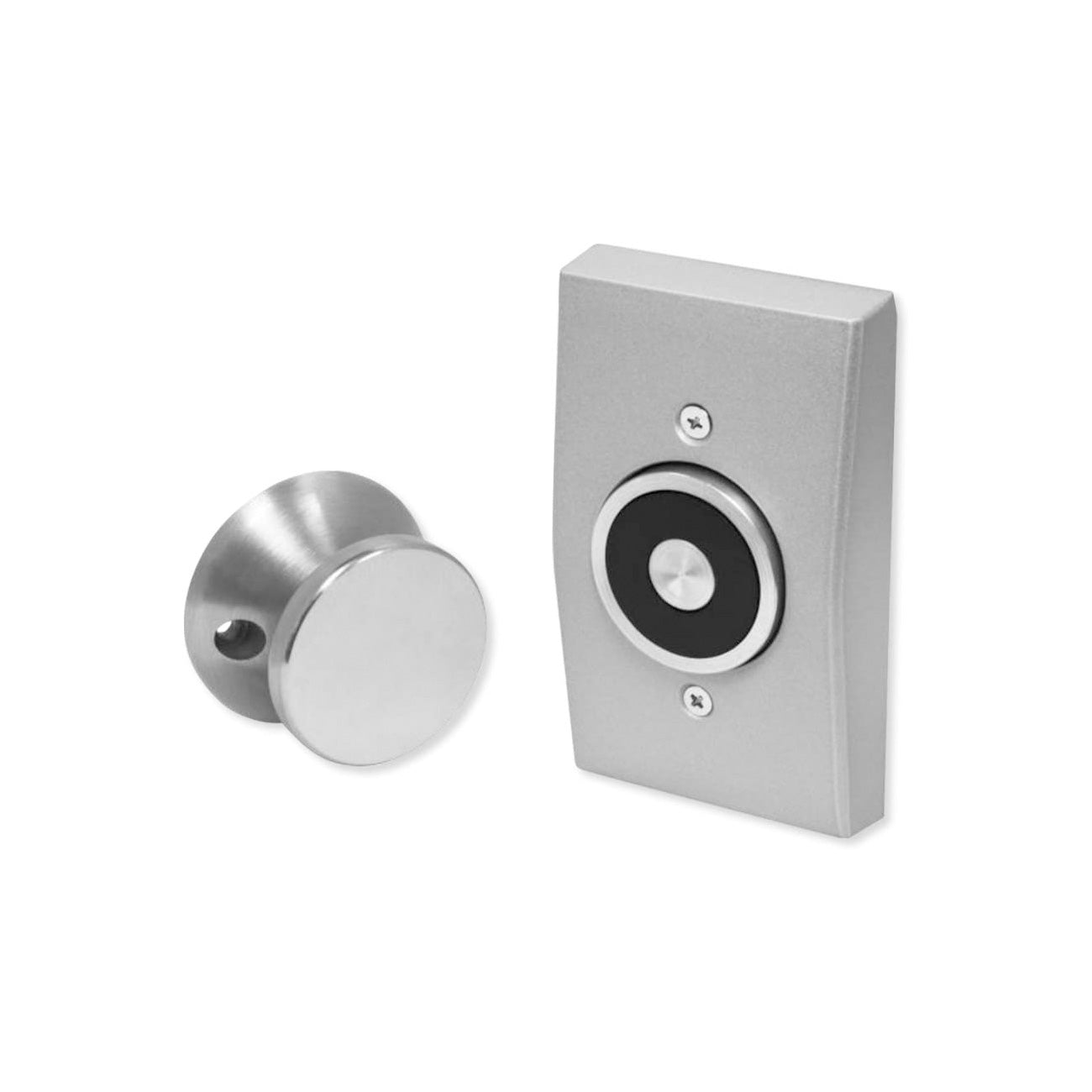

DH-171SQ Seco-Larm Flush-Mount Magnetic Door Holder, Holding Force 33-Lb (15kg), For Use With Door Closers To Control The Release And Closing Of Residential, Commercial And Public Area Doors

DH-171SQ

UPC Code: 676544017493
Product Weight: 1.0 lb
$59.97
