This PRODUCT has a 2 YEAR warranty with full access to tech support in the USA!

Description

The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.

Key Features

  • For use with door closers to control the release and closing of residential, commercial, and public area doors
  • Adjustable armature plate reduces installation time and adjusts to door alignment changes
  • Low profile design
  • Holding force 33-lb (15kg)
  • 3 voltages (12/24 VAC/VDC, and 120VAC)
  • Cast aluminum faceplate
  • No residual magnetism for easy release
  • Built-in voltage spike suppressor
  • Use with SECO-LARM door closers
  • Extension bars available: 1/2″, 3/4″, 1″, 2″ (13mm, 19mm, 25mm, 50mm)
Characteristics
  • Holding Force: 33-lb (15kg)
  • Installation: Surface-mount
  • Operating Voltage: 12/24 VAC/VDC, 120VAC
  • Current Draw: 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31m@24VDC, 24mA@120VAC
  • Magnet Dimensions: 2-3/4″ x 4-9/16″ x 2-1/16″ (70 x 116.5 x 52 mm)
  • Armature Dimensions: 2-9/16″ x 2-9/16″x 1-9/16″ (65 x 65 x 40 mm)
  • Magnet Box Weight: 1-lb 6.4-oz (920g)
  • Door Armature Weight: 8.1-oz (230g)

Description

The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.

Key Features

  • For use with door closers to control the release and closing of residential, commercial, and public area doors
  • Adjustable armature plate reduces installation time and adjusts to door alignment changes
  • Low profile design
  • Holding force 33-lb (15kg)
  • 3 voltages (12/24 VAC/VDC, and 120VAC)
  • Cast aluminum faceplate
  • No residual magnetism for easy release
  • Built-in voltage spike suppressor
  • Use with SECO-LARM door closers
  • Extension bars available: 1/2″, 3/4″, 1″, 2″ (13mm, 19mm, 25mm, 50mm)
Characteristics
Packaging of this product
  • Holding Force: 33-lb (15kg)
  • Installation: Surface-mount
  • Operating Voltage: 12/24 VAC/VDC, 120VAC
  • Current Draw: 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31m@24VDC, 24mA@120VAC
  • Magnet Dimensions: 2-3/4″ x 4-9/16″ x 2-1/16″ (70 x 116.5 x 52 mm)
  • Armature Dimensions: 2-9/16″ x 2-9/16″x 1-9/16″ (65 x 65 x 40 mm)
  • Magnet Box Weight: 1-lb 6.4-oz (920g)
  • Door Armature Weight: 8.1-oz (230g)

Download Datasheets and Manuals of this product

DH-151SQ

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Seco-Larm by Seco-Larm

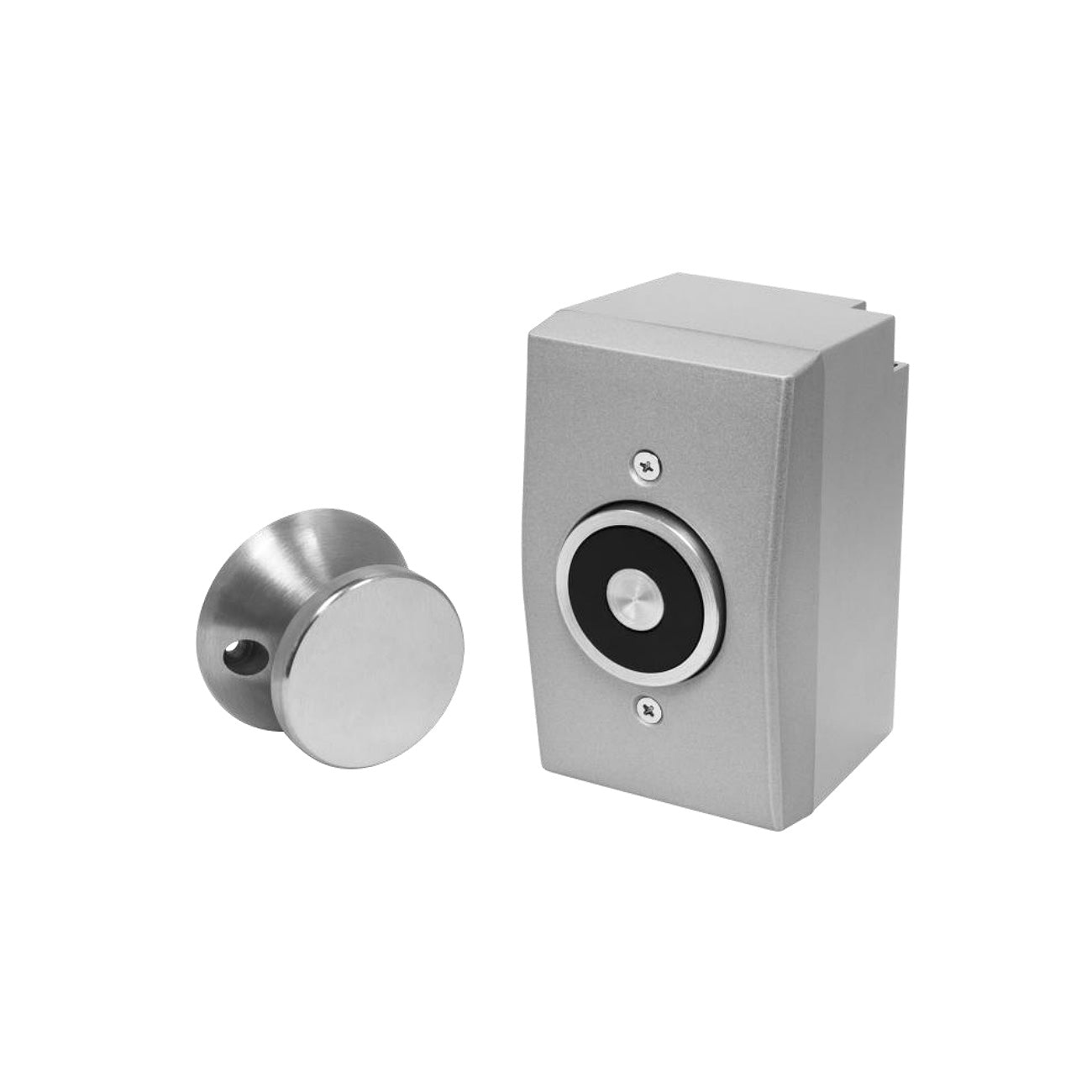

DH-151SQ Seco-Larm Surface-Mount Magnetic Door Holder; Holding Force 33-Lb (15kg); For Use With Door Closers To Control The Release And Closing Of Residential, Commercial, And Public Area Doors

Translation missing: en.products.product.sku:DH-151SQ

UPC Code: 676544017486
Product Weight: 1.0 lb
Regular price
$71.71
Sale price
$71.71
Regular price
Shipping calculated at checkout.

Out of Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
