This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

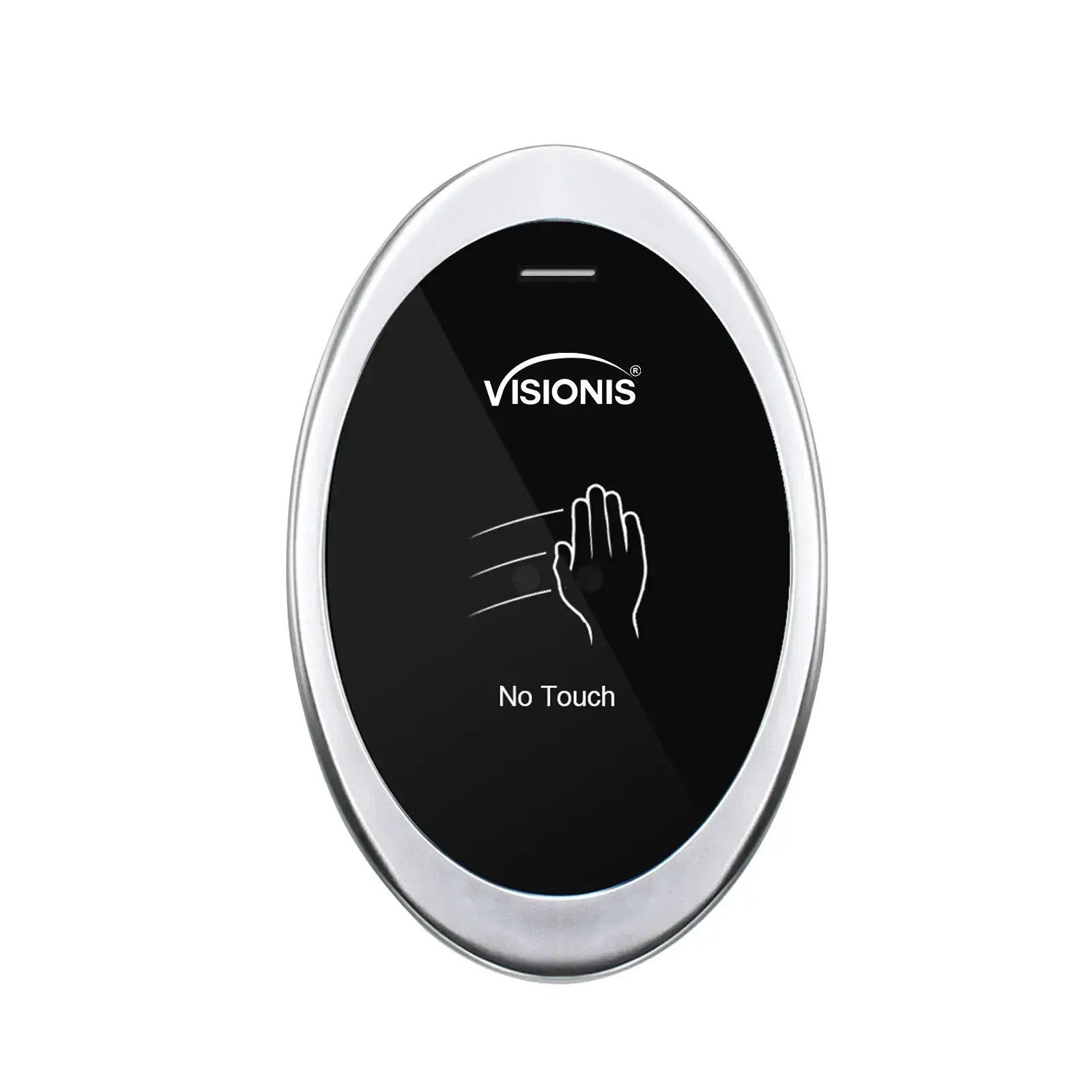

The VISIONIS VIS-7042 is a metal case waterproof infrared no touch button, IP66 waterproof makes it an ideal choice for outdoor use. With our line of No Touch exit button you no longer have to physically push a button to exit. All you have to do is wave your hand and the door will open.

Door release exit buttons are the most common part in access control systems. They are often used in all types of applications such as in offices, banks, gas stations, department stores and much more.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

Features

IP66 waterproof
Zinc-alloy housing
Output contact: NO/NC/COM
Sensor distance: 3~10cm (1.18 ~ 3.94in.) – Adjustable
LED indicators: Red for standby – Green for active

Characteristics

Model No. VIS-7042:

Operating Voltage: 10~24V DC
ldle Current: ≤15mA
Working Current: ≤25mA
Current Rating: 2A
Sensor Distance: 3~10cm (1.18 ~ 3.94in.) - Adjustable
Output: NC, NO, COM
Infrared Wavelength: 940 nm
Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
Operating Temperature: -20°C ~ +60°C (-4°F ~ 140°F)
Operating Humidity: 0% ~ 95%
Physical: Zinc-alloy

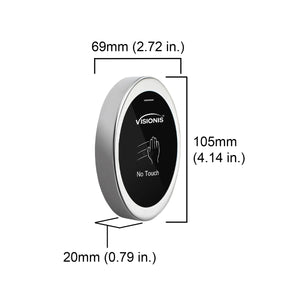

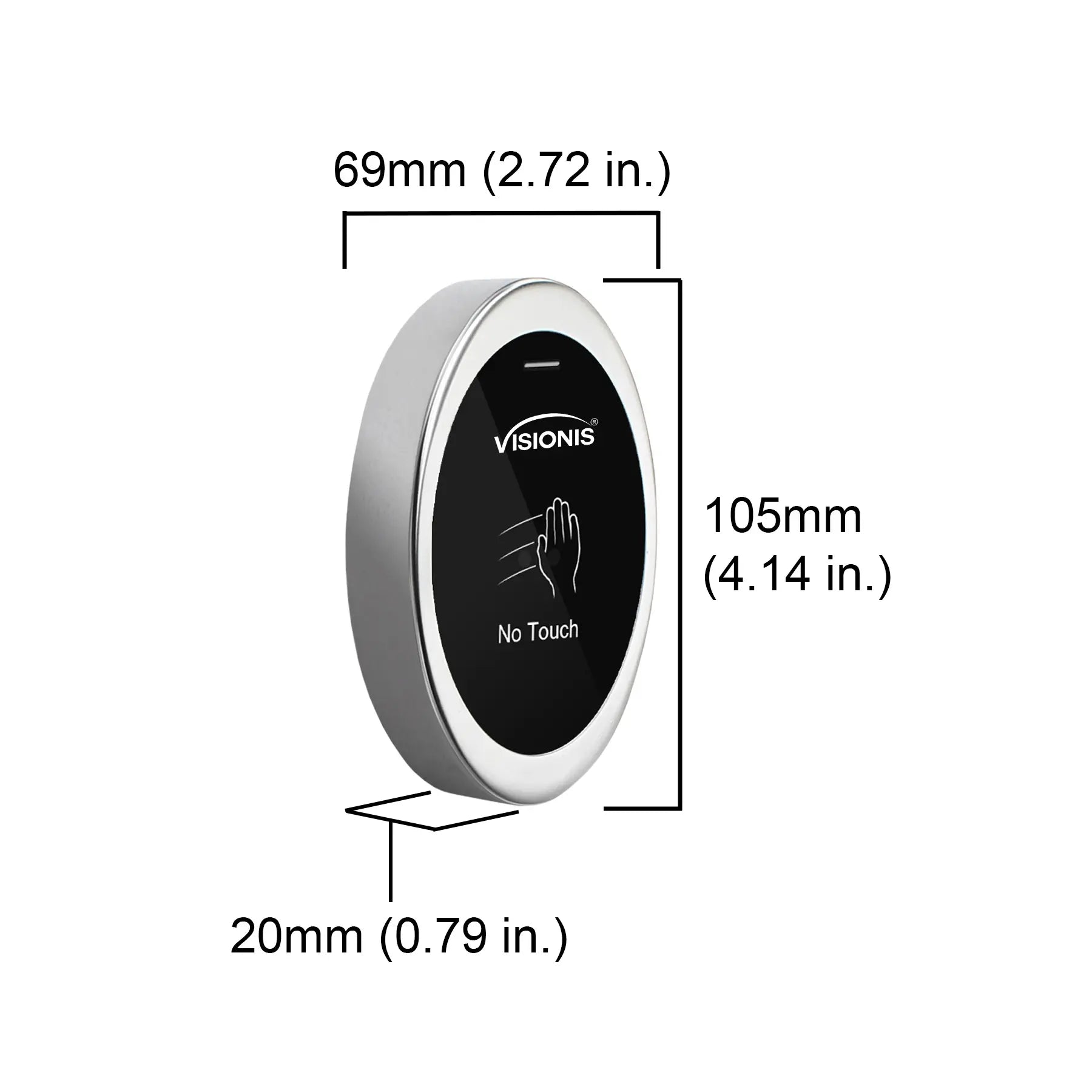

Dimension: L105 x W69 x H20mm (L4.14 x W2.72 x H0.79in.)
Unit Weight: 215gr

Description

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

Features

IP66 waterproof
Zinc-alloy housing
Output contact: NO/NC/COM
Sensor distance: 3~10cm (1.18 ~ 3.94in.) – Adjustable
LED indicators: Red for standby – Green for active

Characteristics

Model No. VIS-7042:

Operating Voltage: 10~24V DC
ldle Current: ≤15mA
Working Current: ≤25mA
Current Rating: 2A
Sensor Distance: 3~10cm (1.18 ~ 3.94in.) - Adjustable
Output: NC, NO, COM
Infrared Wavelength: 940 nm
Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
Operating Temperature: -20°C ~ +60°C (-4°F ~ 140°F)
Operating Humidity: 0% ~ 95%
Physical: Zinc-alloy
Dimension: L105 x W69 x H20mm (L4.14 x W2.72 x H0.79in.)
Unit Weight: 215gr
