This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

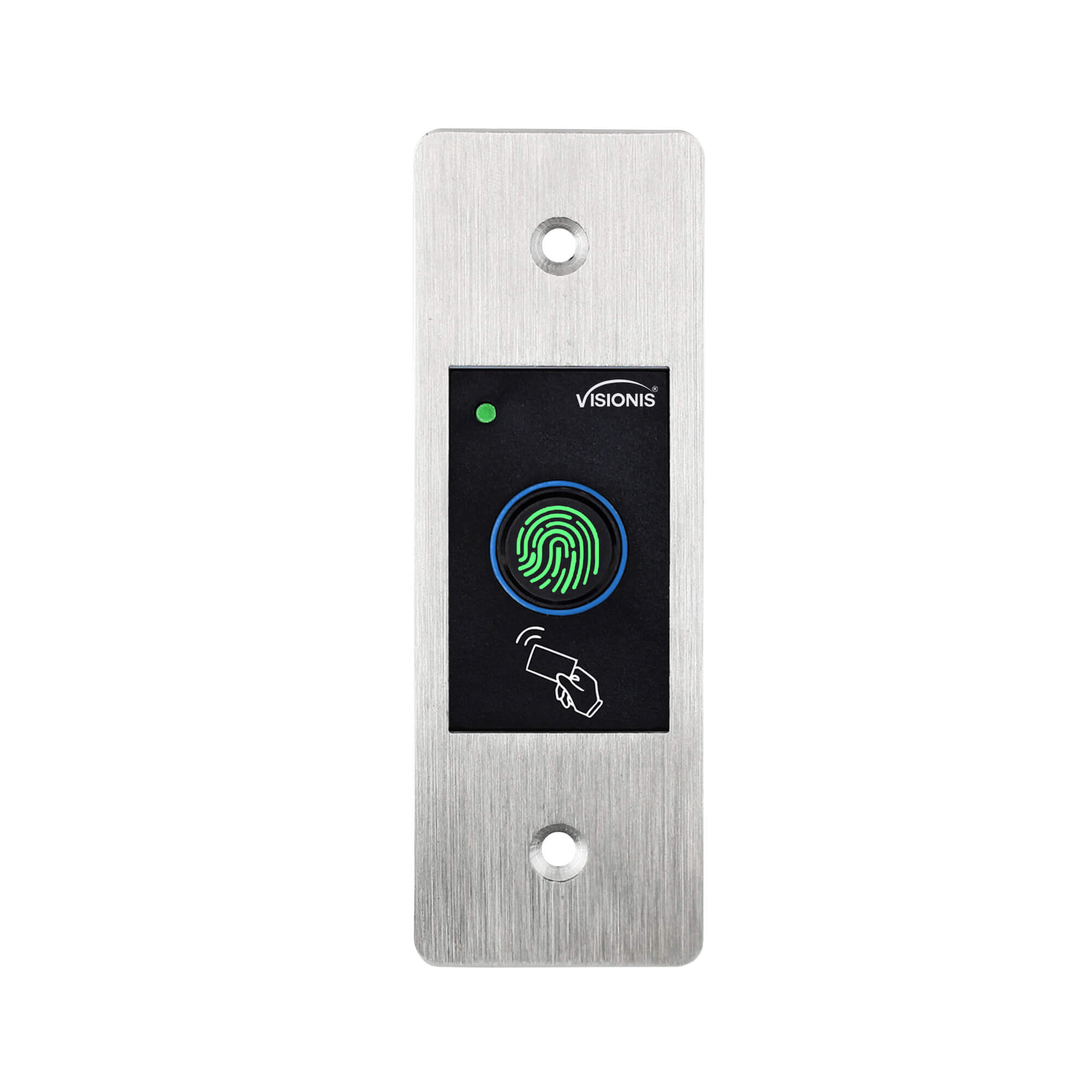

The VISIONIS VIS-3027 is a mini metal case standalone RFID / Fingerprint access control with embedded design, support 125kHz EM Card. It is an ideal choice to install on door frame. IP66 waterproof is very suitable for outdoor use. It supports master card and master fingerprint for easy operation.

Features

Embedded design with mini size

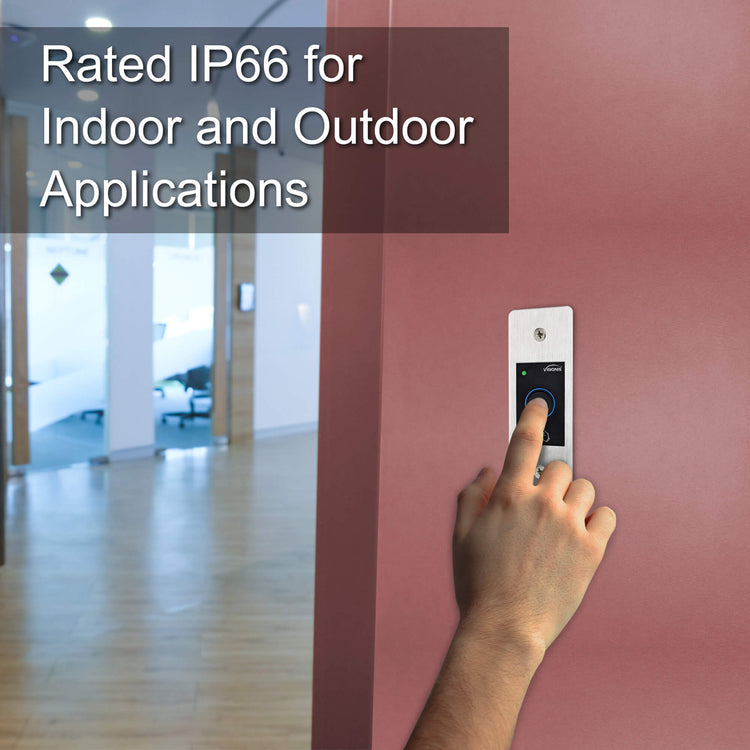

Metal case and waterproof, conform to IP66
User capacity: 100 fingerprints and 3000 cards

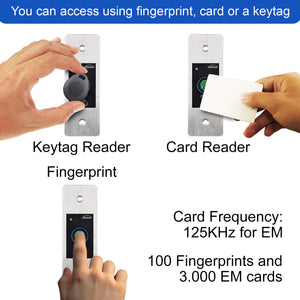

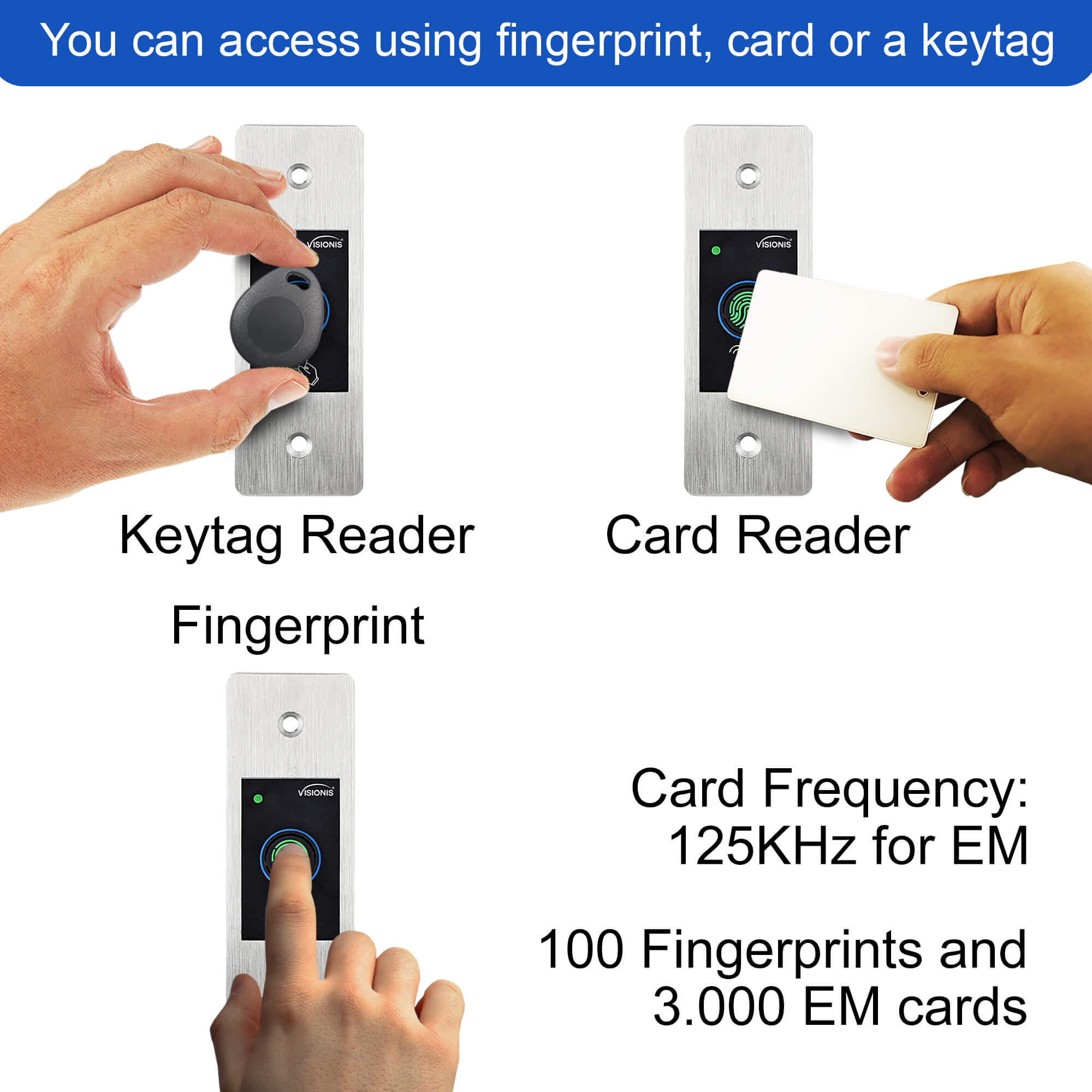

Card type: 125KHz EM card
One programmable relay operation
Latch mode to hold door or gate open
Tri-colour LED status display

Characteristics

Model No. VIS-3027:

User Capacity: 100 Fingerprints and 3000 cards
Operating Voltage: 9~24V DC
Idle Current / Active Current: ≤25mA / ≤100
Proximity Card Reader: EM
Radio Technology: 125KHz Proximity Card
Read Range: 0~2 cm (0~0.79 in.)

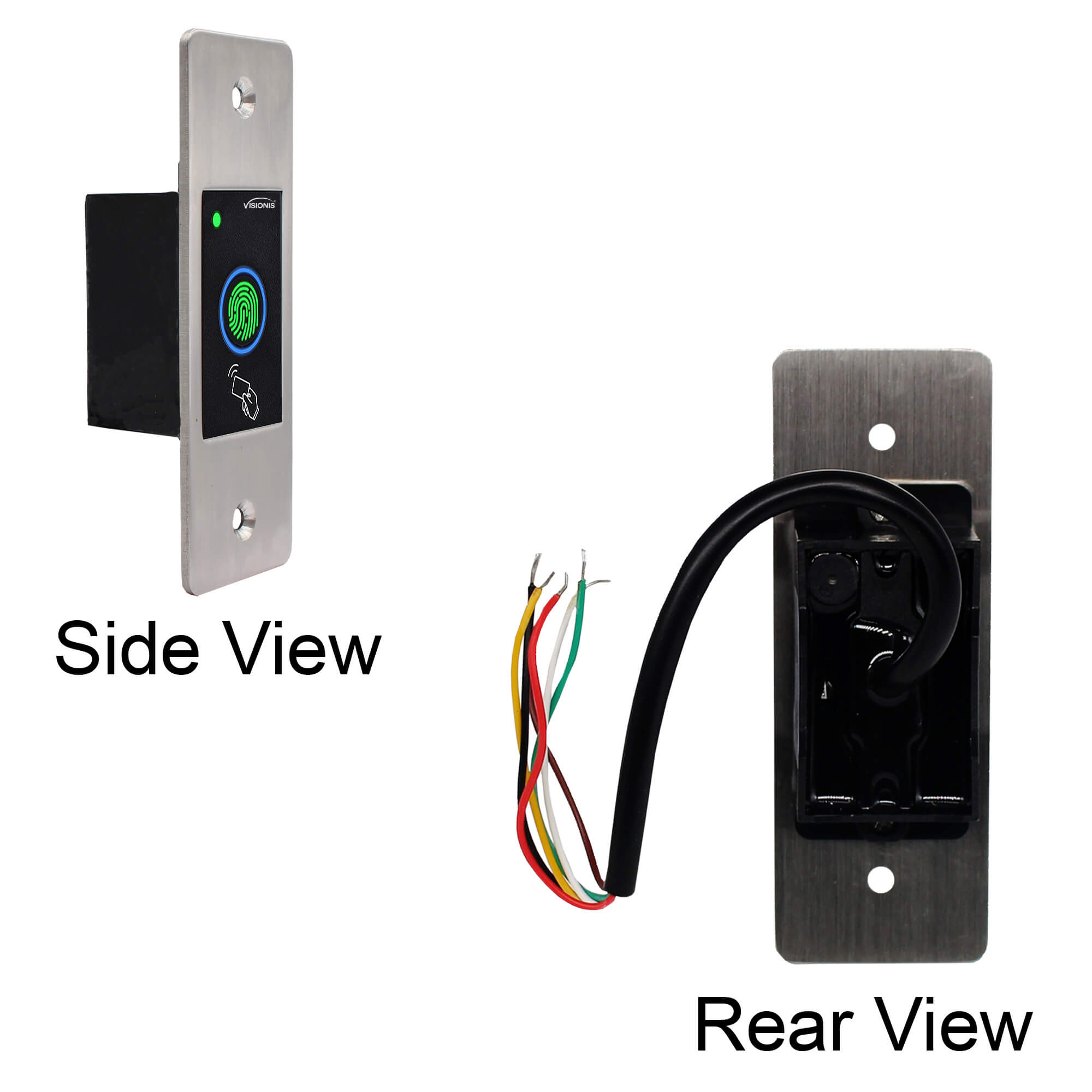

Wiring Connections: Relay output, exit button
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum

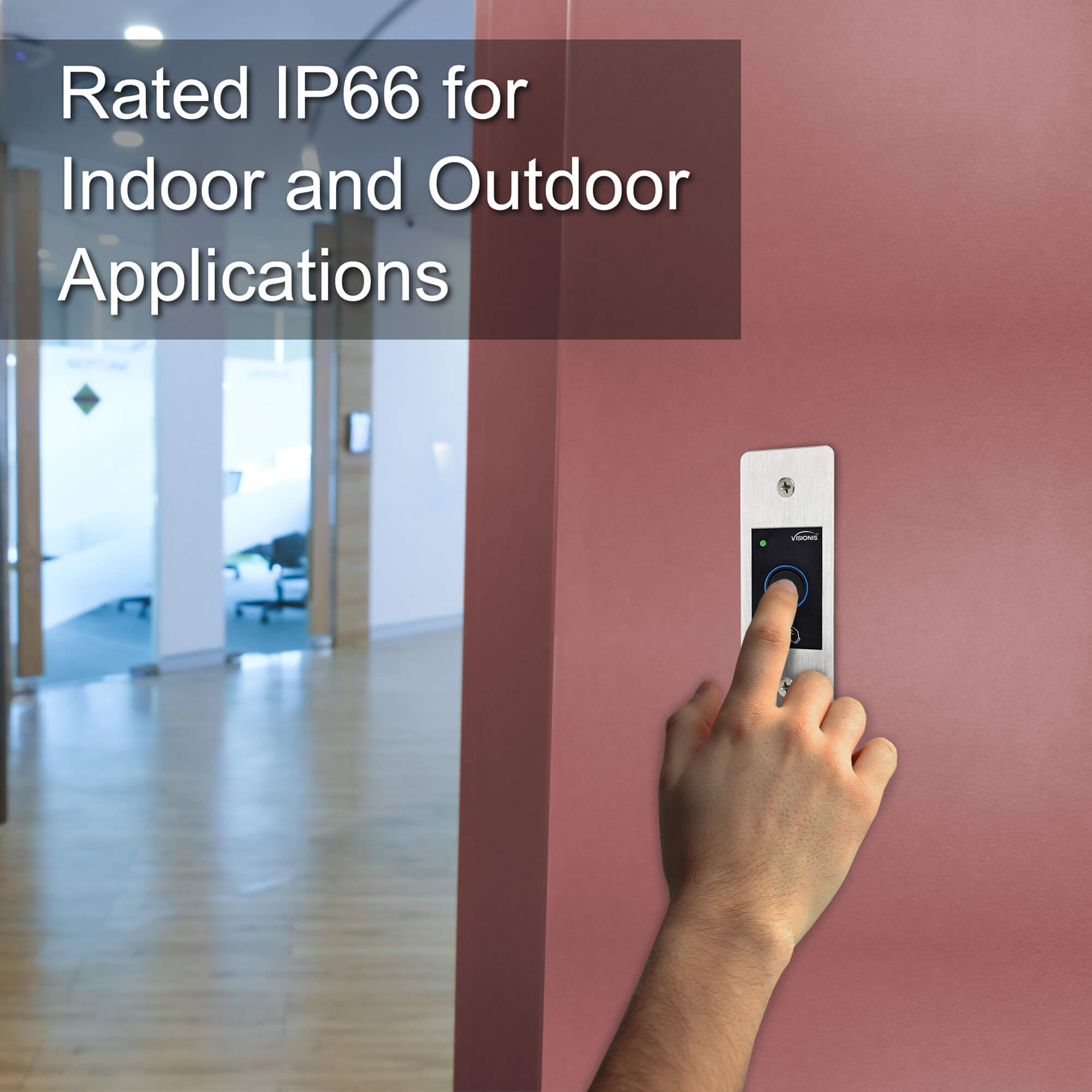

Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
Operating Temperature: -25ºC ~ 60ºC (-13º F ~ 140º F)
Operating Humidity: 20%RH ~ 99%RH
Physical / Color: Zinc-alloy Plate / Silver & Black

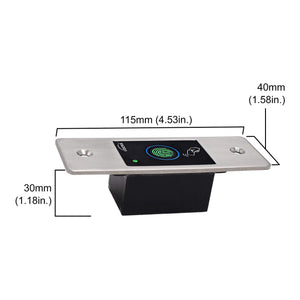

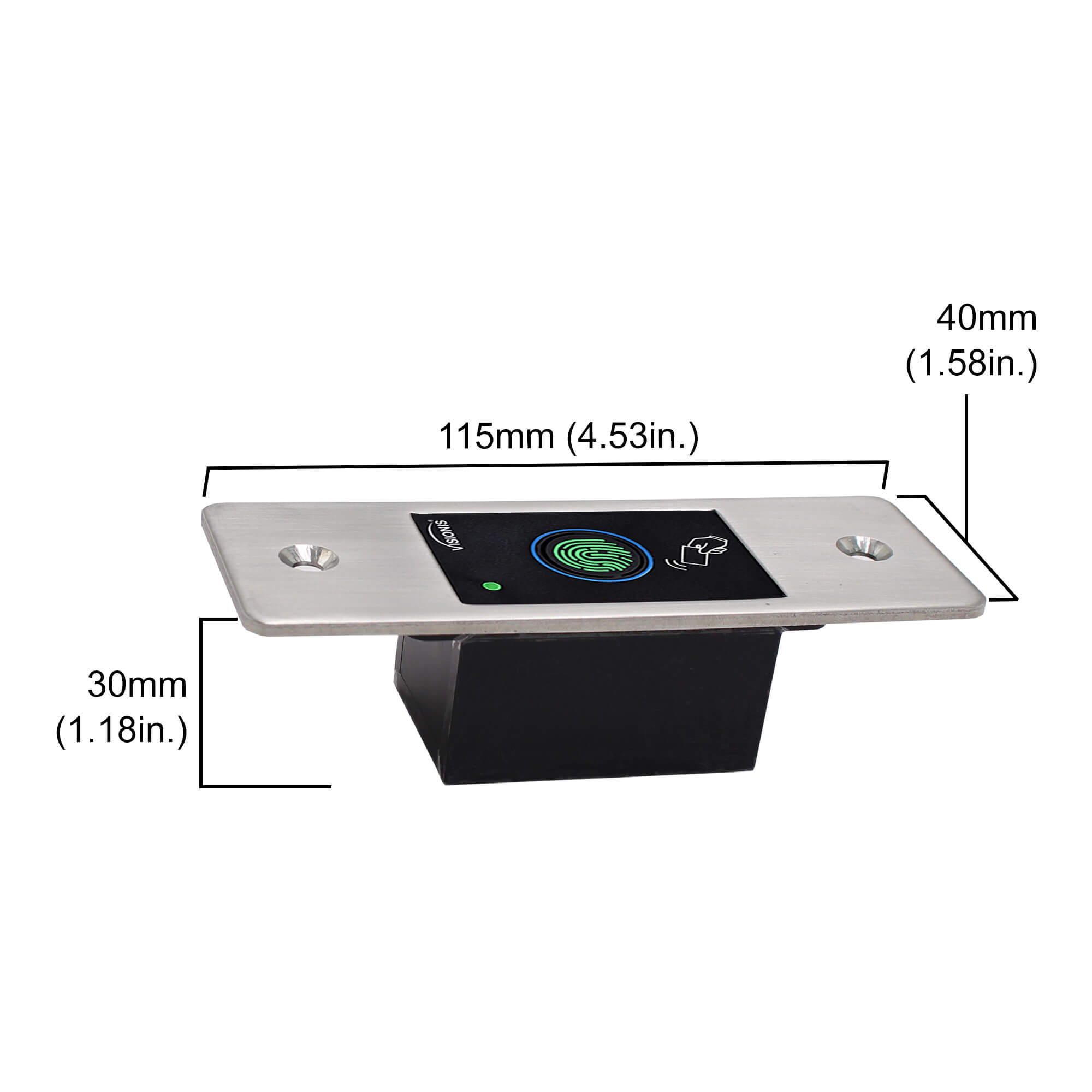

Dimensions: L115 x W40 x H30 (mm) – L4.53 x W1.58 x H1.18 (in.)
Unit Weight: 115g

Description

Features

Embedded design with mini size
Metal case and waterproof, conform to IP66
User capacity: 100 fingerprints and 3000 cards
Card type: 125KHz EM card
One programmable relay operation
Latch mode to hold door or gate open
Tri-colour LED status display

Characteristics

Model No. VIS-3027:

User Capacity: 100 Fingerprints and 3000 cards
Operating Voltage: 9~24V DC
Idle Current / Active Current: ≤25mA / ≤100
Proximity Card Reader: EM
Radio Technology: 125KHz Proximity Card
Read Range: 0~2 cm (0~0.79 in.)
Wiring Connections: Relay output, exit button
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Index of Protection: IP66 (No ingress of dust; complete protection against contact (dust-tight). Protection against powerful water jets.)
Operating Temperature: -25ºC ~ 60ºC (-13º F ~ 140º F)
Operating Humidity: 20%RH ~ 99%RH
Physical / Color: Zinc-alloy Plate / Silver & Black
Dimensions: L115 x W40 x H30 (mm) – L4.53 x W1.58 x H1.18 (in.)
Unit Weight: 115g

Download Datasheets and Manuals of this product

VIS-3027

Visionis by Visionis

Visionis VIS-3027 – Indoor + Outdoor Rated IP66 Metal Access Control Standalone Only Biometric Fingerprint + Reader + 100 Fingerprints And 3000 EM Cards + Flush Mount Slim Design

Name: Visionis VIS-3027 – Indoor + Outdoor Rated IP66 Metal Access Control Standalone Only Biometric Fingerprint + Reader + 100 Fingerprints And 3000 EM Cards + Flush Mount Slim Design
Brand: Visionis
SKU: VIS-3027
Price: 54.44 USD
Availability: InStock

Translation missing: en.products.product.sku:VIS-3027

UPC Code: 734598804794

Product Weight: 1.0 lb

Regular price: $54.44
Sale price: $54.44
Regular price

Shipping calculated at checkout.

Quantity:

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

Free shipping with in the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
