Description

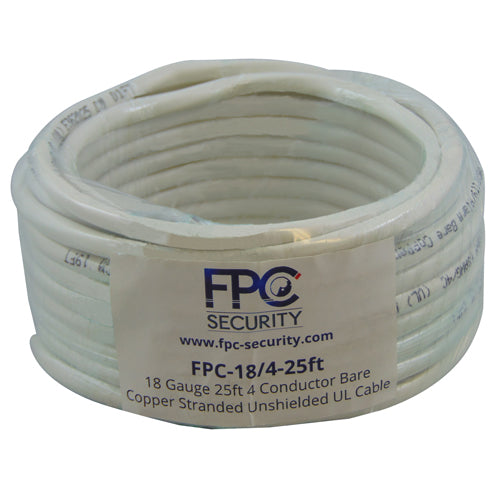

The FPC-18/4-25FT is an 18 gauge, 4 conductor bare copper general electric wire. This unshielded and UL listed wire can be used for multiple low voltage electrical applications. This can be used for maglocks, exit buttons, electric strikes, dropbolts, and much more.

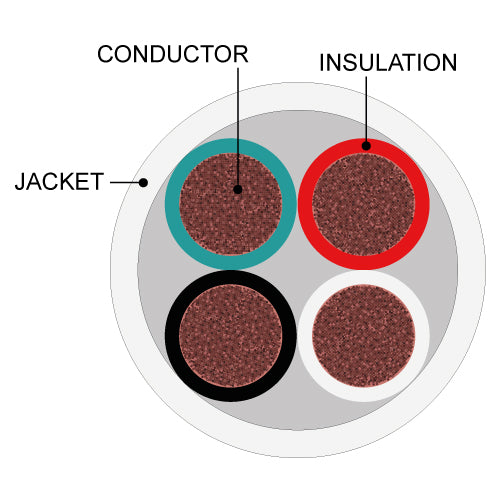

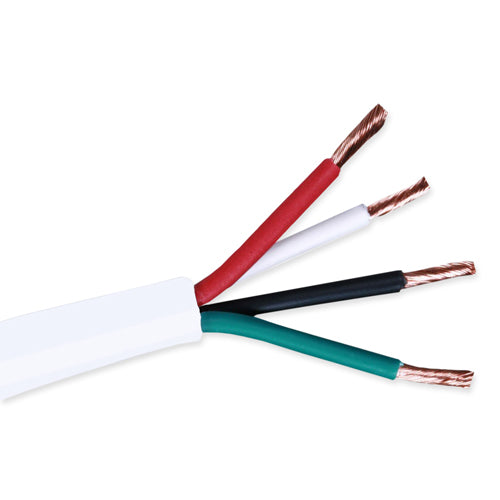

The white coating on the outside provides the Jacket portion to protect the 4 conductor wires. The color coding for each wire provides the necessary insulation. Then under the color coding is your conductor used for the installation process. Color codes are black, red, white, and green.

Characteristics

Model No. FPC-18/4-25FT:

  • Cable Construction: 18 AWG SBC 4C
  • Insulation Material: PVC
  • Ripcord: Nylon
  • Jacket OD: 5.0mm
  • Jacket Material Type: CM/CL2
  • Jacket Color: White
  • Operating Temp Rating: 60°C
  • Impedence: 100 Ω
  • Voltage Rating: 300 V
  • Applications: HVAC Systems, Doorbell Systems, Control Circuits, Commercial/Residential
  • Compliances: ETL/UL Listed CM/CL2, RoHS Compliant
  • Features: Sunlight Resistant PVC, Footage Markers On Cable Jacket, 25FT Roll
Description

The FPC-18/4-25FT is an 18 gauge, 4 conductor bare copper general electric wire. This unshielded and UL listed wire can be used for multiple low voltage electrical applications. This can be used for maglocks, exit buttons, electric strikes, dropbolts, and much more.

The white coating on the outside provides the Jacket portion to protect the 4 conductor wires. The color coding for each wire provides the necessary insulation. Then under the color coding is your conductor used for the installation process. Color codes are black, red, white, and green.

Characteristics
Packaging of this product

Model No. FPC-18/4-25FT:

  • Cable Construction: 18 AWG SBC 4C
  • Insulation Material: PVC
  • Ripcord: Nylon
  • Jacket OD: 5.0mm
  • Jacket Material Type: CM/CL2
  • Jacket Color: White
  • Operating Temp Rating: 60°C
  • Impedence: 100 Ω
  • Voltage Rating: 300 V
  • Applications: HVAC Systems, Doorbell Systems, Control Circuits, Commercial/Residential
  • Compliances: ETL/UL Listed CM/CL2, RoHS Compliant
  • Features: Sunlight Resistant PVC, Footage Markers On Cable Jacket, 25FT Roll
