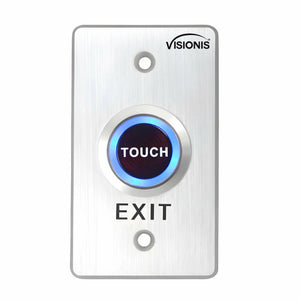

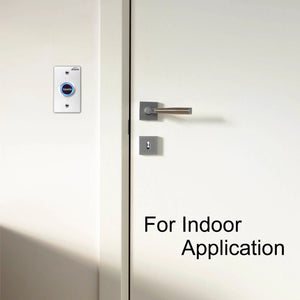

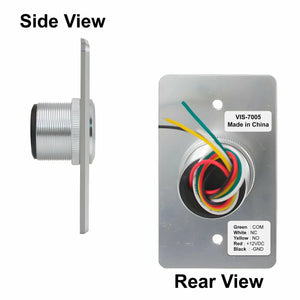

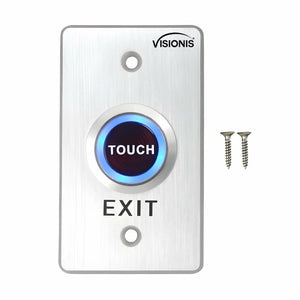

VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
    Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
    Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
    Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
    Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
    Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
    VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
    VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
    Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
    Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
    Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
    Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
    Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
    VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
    VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
Dimensions. Request to exit button with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
Status LED. Dimensions. request to exit device with LED lights for secure access control systems VISIONIS VIS-7005
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.
VISIONIS VIS-7005 ultra-thin push to exit button with LED lights for secure access control systems.

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The VISIONIS VIS-7005 Indoor Ultra-Thin Push + Touch to Exit Button combines sleek design with robust functionality, making it the ideal choice for modern access control systems. Its illuminated LED button adds a professional touch while clearly indicating standby and active modes, ensuring effortless operation.

Crafted with a 4mm thick aluminum alloy panel, the VIS-7005 ensures durability in high-traffic environments. Designed for seamless integration, this request to exit device is compatible with most access control systems, offering NO, NC, and COM outputs. Its ultra-thin profile makes it perfect for residential, commercial, and industrial settings.

Key Features

  • Sleek, ultra-thin design for modern aesthetics.
  • Blue LED (Standby) and Green LED (Active/Open) indicators.
  • Supports NO, NC, and COM outputs for flexible connectivity.
  • Rated for 100,000 mechanical cycles, ensuring long-lasting performance.
  • Easy installation for hollow doors.
  • Wide temperature range: -20°C to +55°C (-4°F to 131°F).
  • Lightweight and compact: 86L x 50W x 25H mm (3.38L x 1.96W x 0.98H in.).
Characteristics

Model No. VIS-7005:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg
  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Packaging of this product
Description

The VISIONIS VIS-7005 Indoor Ultra-Thin Push + Touch to Exit Button combines sleek design with robust functionality, making it the ideal choice for modern access control systems. Its illuminated LED button adds a professional touch while clearly indicating standby and active modes, ensuring effortless operation.

Crafted with a 4mm thick aluminum alloy panel, the VIS-7005 ensures durability in high-traffic environments. Designed for seamless integration, this request to exit device is compatible with most access control systems, offering NO, NC, and COM outputs. Its ultra-thin profile makes it perfect for residential, commercial, and industrial settings.

Key Features

  • Sleek, ultra-thin design for modern aesthetics.
  • Blue LED (Standby) and Green LED (Active/Open) indicators.
  • Supports NO, NC, and COM outputs for flexible connectivity.
  • Rated for 100,000 mechanical cycles, ensuring long-lasting performance.
  • Easy installation for hollow doors.
  • Wide temperature range: -20°C to +55°C (-4°F to 131°F).
  • Lightweight and compact: 86L x 50W x 25H mm (3.38L x 1.96W x 0.98H in.).
Characteristics
Packaging of this product

Model No. VIS-7005:

  • Contact Rating: 3A/12-24V
  • Output Contact: NO/NC/COM
  • Power: 12VDC - 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
  • Suitable for Door: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.065kg
  • Dimension Of Plate: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.

Download Datasheets and Manuals of this product

VIS-7005

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Touch To Exit Button For Door Access Control. With LED Light. For Indoor Use. Thick Aluminium Alloy. NC, COM and NO Outputs - VIS-7005 Visionis

VIS-7005

UPC Code: 701772944379 Weight: 1.0 lb
  • CE Certificate
$25.37
$25.37
Shipping calculated at checkout.

In Stock
Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska

Popup Title

Popup description
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
