VIS-3004 Waterproof Keypad and Card Reader Description

The Visionis VIS-3004 is a versatile outdoor access control keypad that combines durability with advanced security features. Designed for both indoor and outdoor use, this IP68-rated waterproof keypad is built with a metal anti-vandal construction, making it perfect for high-security environments.

With support for up to 1,000 users, the VIS-3004 provides multiple access methods, including card, code, or card + code, ensuring flexibility and convenience for any application. As part of Visionis' standalone access control keypads, it functions independently, requiring no additional software.

Key Features:

• Standalone Access Keypad: Operates independently for secure access control.
• Weatherproof Design: IP68 rating ensures performance in extreme environments.
• Multi-Access Options: Supports card, code, and card + code for user convenience.
• Anti-Vandal Construction: Durable metal design provides long-lasting protection.

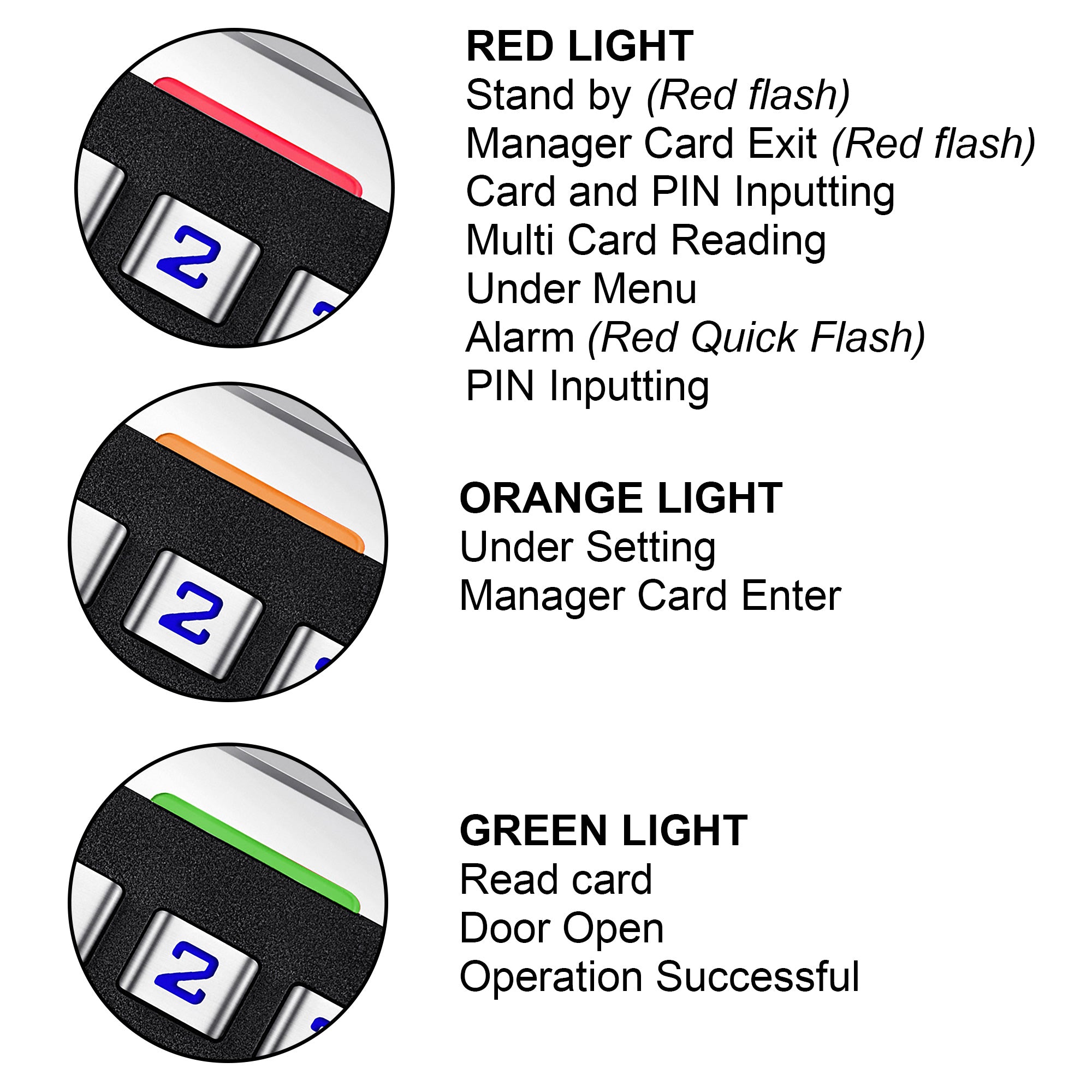

• Backlit Keypad: Easy operation even in low-light conditions.
• Wiegand 26 Compatibility: Seamlessly integrates with other access control systems.

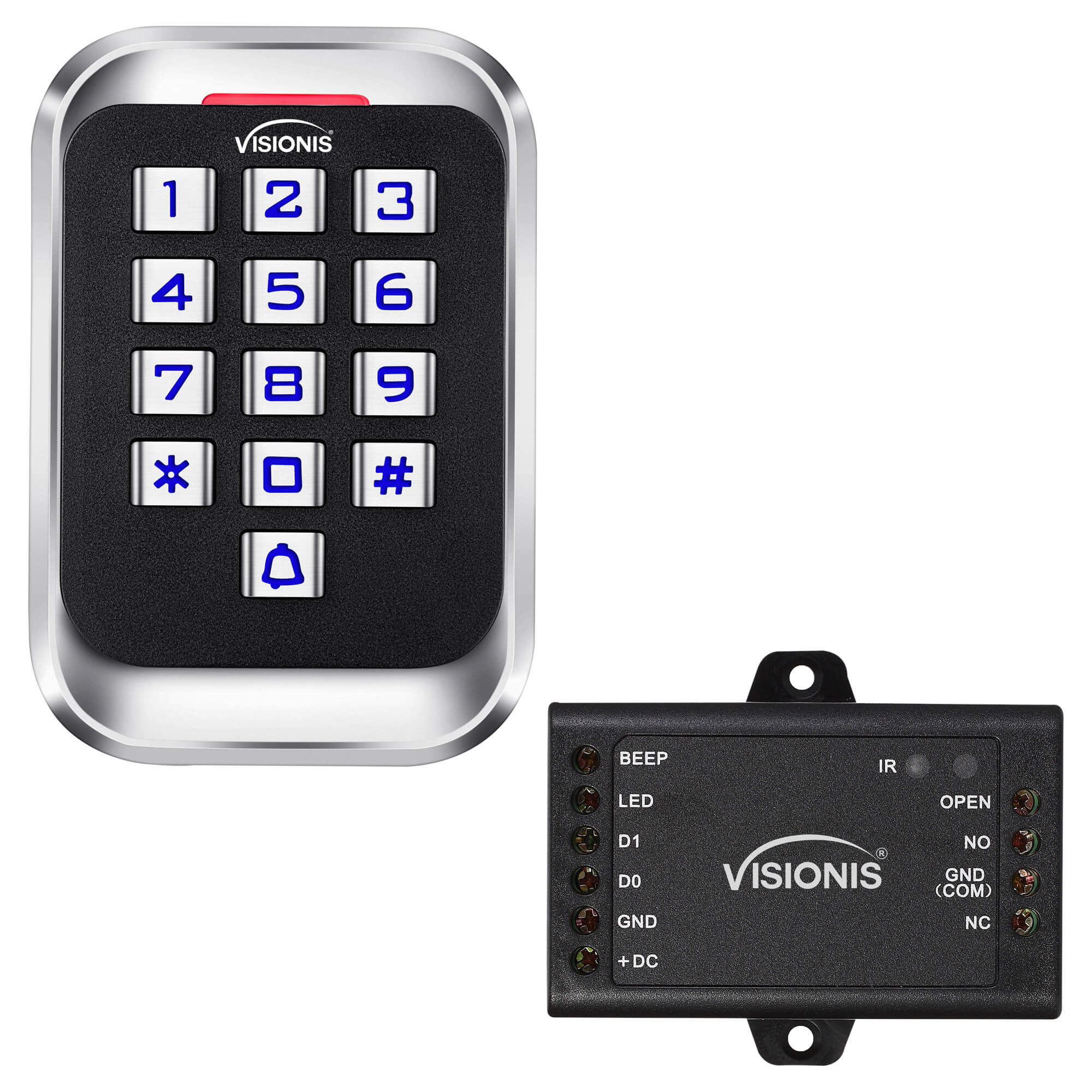

VIS-MINI-CNTRL Mini Controller Description

This keypad comes with the VIS-MINI-CNTRL. This device is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.

VIS-MINI-CNTRL Features

• User Capacity: 1,000
• Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
• Can connect with any reader with Wiegand 26~37 bits output
• Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
• Support Master Card function
• Low temperature resistance (-40°C)



IMPORTANT:

• These products do not include a power supply
• Professional installation is recommended.
• For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
• If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
• The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.

---
