This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

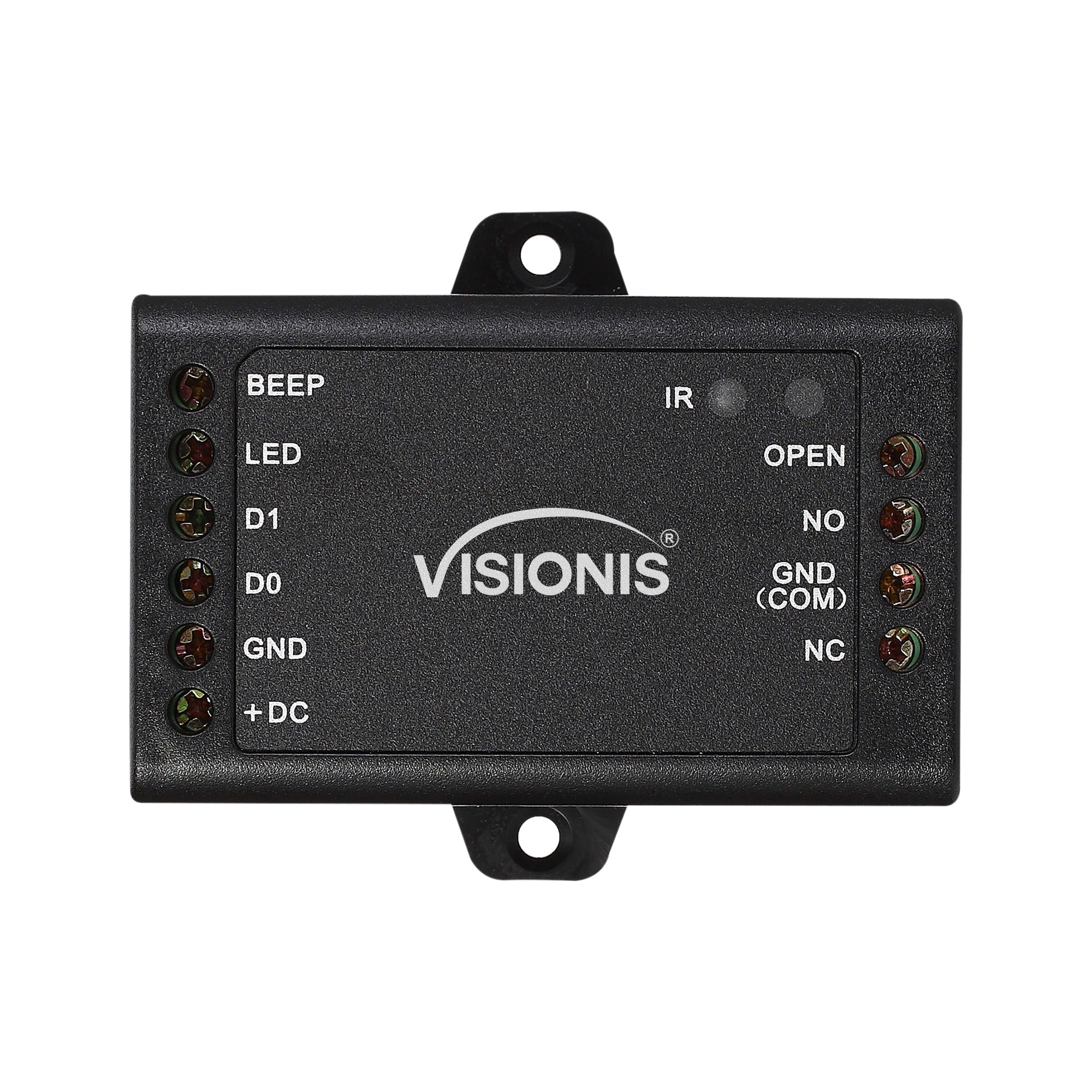

The VIS-MINI-CNTRL is a mini single door control panel, can work with any entry device Wiegand 26~37 bits output reader. Card type depends on the reader, example: EM, HID, and MFR card types. It uses Atmel microcontroller to assure stable performance and equips with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



Features

  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)



Important:

  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the Keypad/Card Reader (Entry Device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Characteristics

Model No. VIS-MINI-CNTRL:

  • User Capacity: 1,000
  • Operating Voltage: 9~24V DC
  • Idle Current: < 20mA
  • Relay One: (NO, NC, Common)
  • Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • Wiegand Interface Input: Wiegand 26~37 bits
  • Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
  • Environment: Indoor
  • Operating Temperature: -40°C~60°C (-40°F~140°F)
  • Operating Humidity: 0 ~ 90%RH
  • Physical: ABS Shell
  • Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
  • Unit Weight: 40g
  • Shipping Weight: 100g


Description

The VIS-MINI-CNTRL is a mini single door control panel, can work with any entry device Wiegand 26~37 bits output reader. Card type depends on the reader, example: EM, HID, and MFR card types. It uses Atmel microcontroller to assure stable performance and equips with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.



Features

  • User Capacity: 1,000
  • Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
  • Can connect with any reader with Wiegand 26~37 bits output
  • Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
  • Support Master Card function
  • Low temperature resistance (-40°C)



Important:

  • For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
  • If the Keypad/Card Reader (Entry Device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
  • The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
Characteristics

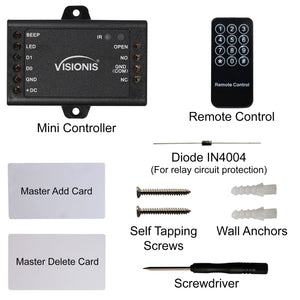

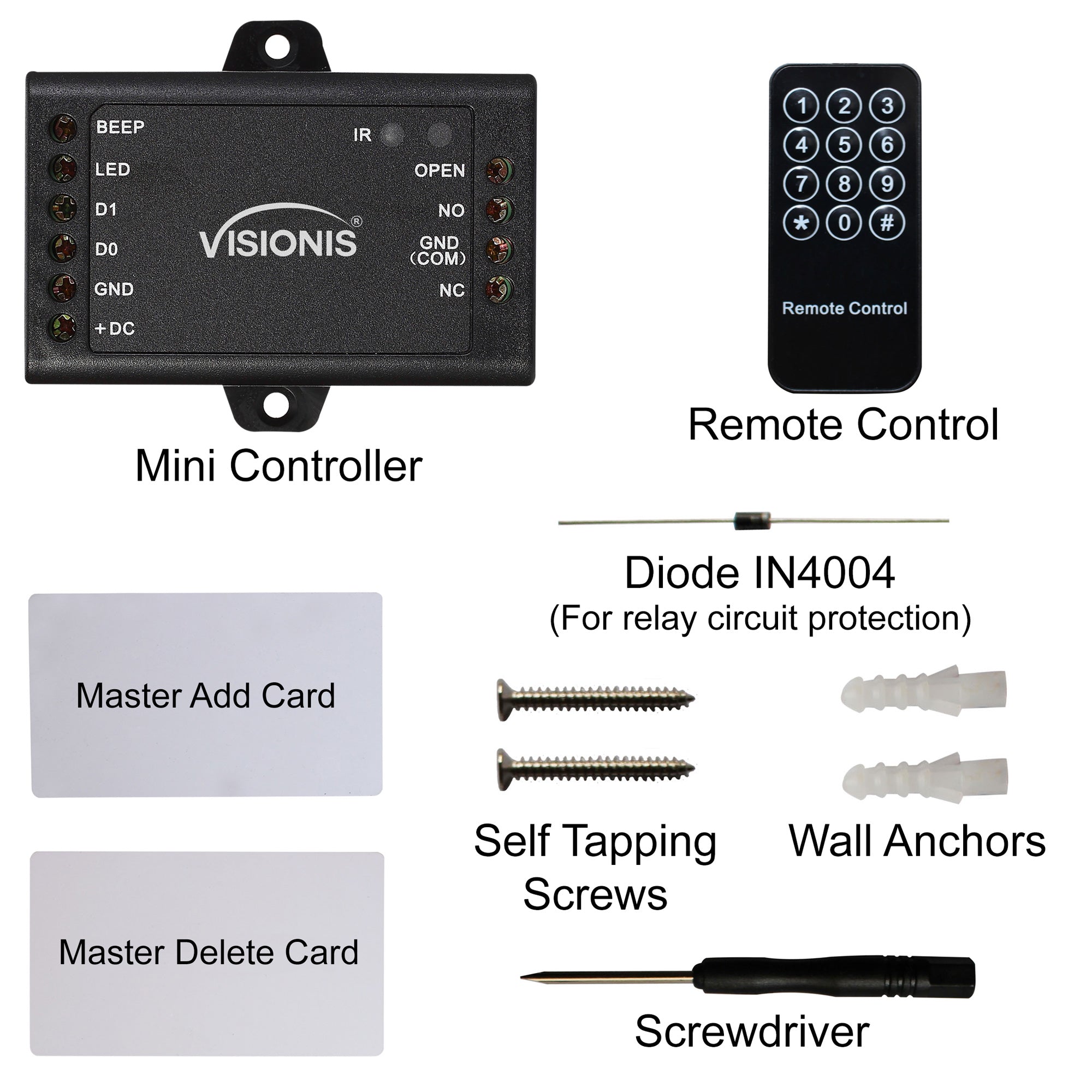

Packaging of this product

Model No. VIS-MINI-CNTRL:

  • User Capacity: 1,000
  • Operating Voltage: 9~24V DC
  • Idle Current: < 20mA
  • Relay One: (NO, NC, Common)
  • Adjustable Relay Output Time: 1~99 Seconds (5 seconds default)
  • Lock Output Load: 2 Amp Maximum
  • Wiegand Interface Input: Wiegand 26~37 bits
  • Wiegand Interface Output: Wiegand 26~37 bits (for user transfer)
  • Environment: Indoor
  • Operating Temperature: -40°C~60°C (-40°F~140°F)
  • Operating Humidity: 0 ~ 90%RH
  • Physical: ABS Shell
  • Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
  • Unit Weight: 40g
  • Shipping Weight: 100g
